20003

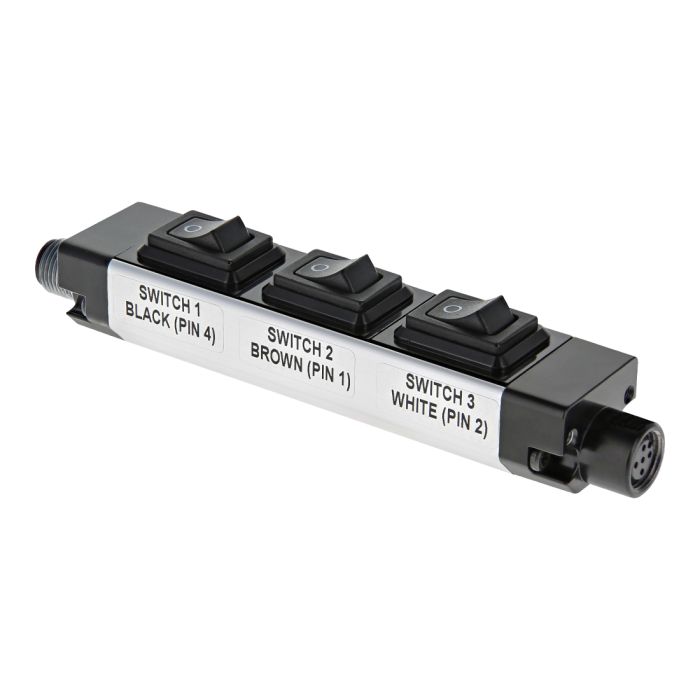

In-Line Rocker Switch
In-Line Rocker Switch
- IP65 and IP67
- Rated for 12 to 30 V DC
- Contains three 2-position (On/Off) in-line switches
- Includes mounting bracket
| ESD Safe | No |
| Weight | 0.312000 |
| Color | Black |
| Series | 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series |
| Supply Voltage | 30 V DC max |
| Current Rating | 4 Amps max |
| Connection | M12 (4-pin) |
- IP65 and IP67
- Rated for 12 to 30 V DC
- Contains three 2-position (On/Off) in-line switches
- Includes mounting bracket
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 11-5310 | 2 | M5 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 25-1951 | 2 | M5 Slide-in Economy T-Nut - Offset Thread |
  | 11-5312 | 2 | M5 x 12.00mm Button Head Socket Cap Screw (BHSCS) |
| 13023 | 2 | M5 Self-Aligning Slide-in T-Nut |
 | 11-5310 | 2 | M5 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 13023 | 2 | M5 Self-Aligning Slide-in T-Nut |
 | 11-5312 | 2 | M5 x 12.00mm Button Head Socket Cap Screw (BHSCS) |
| 13047 | 2 | M5 Self-Aligning Slide-in T-Nut |
Manual
Product Specs
- Product Details
-
ESD Safe No Weight 0.312000 Color Black Series 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series Supply Voltage 30 V DC max Current Rating 4 Amps max Connection M12 (4-pin)
-
- Description
- IP65 and IP67
- Rated for 12 to 30 V DC
- Contains three 2-position (On/Off) in-line switches
- Includes mounting bracket
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 11-5310 2 M5 x 10.00mm Button Head Socket Cap Screw (BHSCS)
25-1951 2 M5 Slide-in Economy T-Nut - Offset Thread 11-5312 2 M5 x 12.00mm Button Head Socket Cap Screw (BHSCS)
13023 2 M5 Self-Aligning Slide-in T-Nut
11-5310 2 M5 x 10.00mm Button Head Socket Cap Screw (BHSCS)
13023 2 M5 Self-Aligning Slide-in T-Nut
11-5312 2 M5 x 12.00mm Button Head Socket Cap Screw (BHSCS)
13047 2 M5 Self-Aligning Slide-in T-Nut
-
