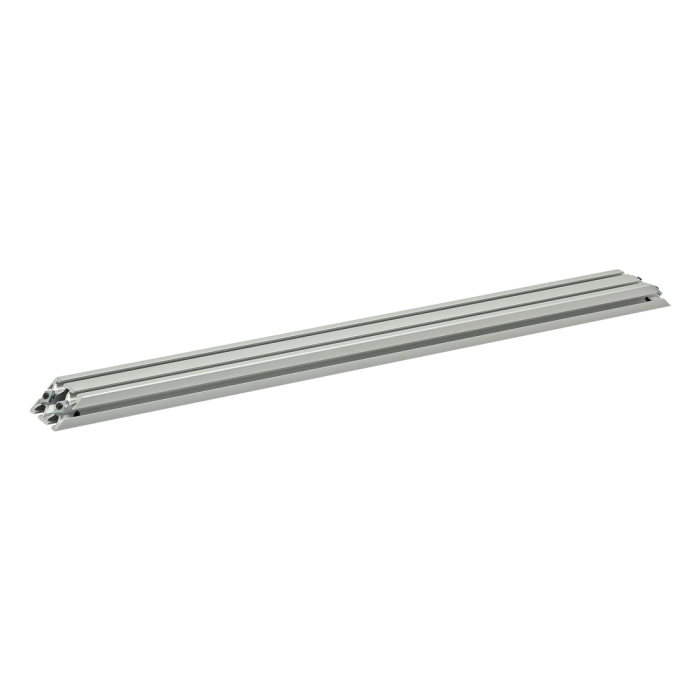

20-2040 45 Degree Support, 480mm Long
20-2040 45 Degree Support, 480mm Long
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Total Price
................................................................................................................................Series | 20 Series |
Profile | 20-2040 |
A | 20.00mm |
B | 40.00mm |
C | 480.00mm |
Weight | 0.789000 |
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Mount to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
11-5512 | 4 | M5 x 12.00mm Socket Head Cap Screw (SHCS) | |
14122 | 4 | M5 Slide-in Economy T-Nut Block | |
11-6040 | 4 | 5.30mm ID Washer |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 20 Series Profile 20-2040 A 20.00mm B 40.00mm C 480.00mm Weight 0.789000
-
- Description
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 11-5512 4 M5 x 12.00mm Socket Head Cap Screw (SHCS)
14122 4 M5 Slide-in Economy T-Nut Block 11-6040 4 5.30mm ID Washer
