14204
10 & 25 Series 2 Hole - 18mm Slotted Inside Corner Bracket with Dual Support
10 & 25 Series 2 Hole - 18mm Slotted Inside Corner Bracket with Dual Support

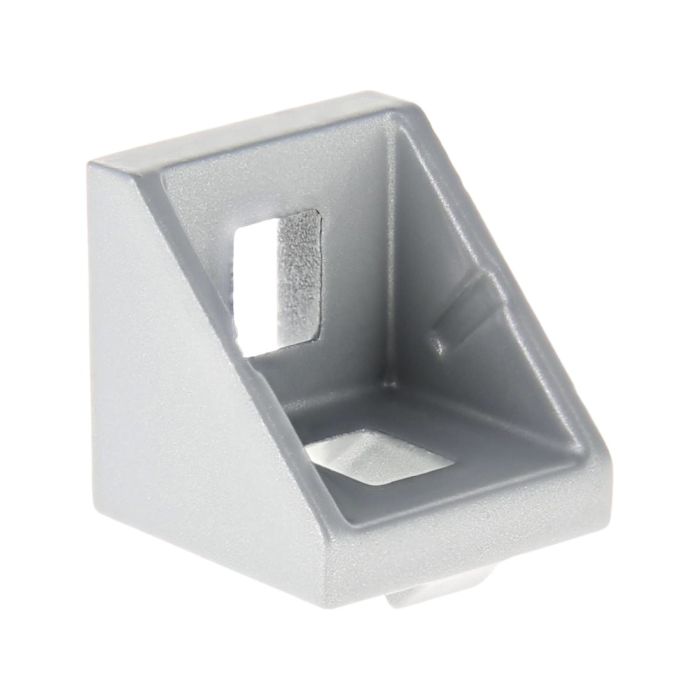

The 2 hole - 18mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
The 2 hole - 18mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | 10 Series, 25 Series |
| Material | Aluminum |
| Finish | Silver Powder Coat |
| Slot Tab | Yes |
| A | .708” (18.00mm) |
| B | .708” (18.00mm) |
| C | .051” (1.32mm) |
| D | .423” (10.76mm) |
| E | .354” (9.00mm) |
| F | .144” (3.68mm) |
| G | .264” (6.72mm) |
| H | .216” (5.50mm) |
| J | .708” (18.00mm) |
| K | .236 |
| L | N/A |
| Weight | 0.011000 |
The 2 hole - 18mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3426 | 2 | Bolt Assembly: 10-32 x .375" Black BHSCS and Standard Slide-In T-Nut - Black Zinc |
 | 13-5310 | 2 | M5 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 25-1951 | 2 | M5 Slide-in Economy T-Nut - Offset Thread |
