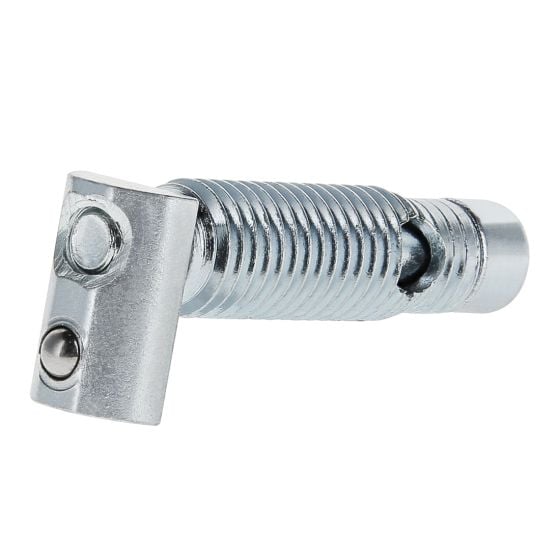

10 & 25 Series T-Matic Connector
10 & 25 Series T-Matic Connector
- Internal connector that requires no machining
- Compatible with 10 and 25 Series profiles
- Infinite positioning along the T-Slot profile
- Two ways to install: Slide into the end of profile or install on captivated profiles with roll-in T-nut
- Holding force exceeding 300 lbs and torsional strength over 144 in-lbs.
- Left-handed barrel thread and self-retained screw to support ease of installation.
- Install barrel thread with 5mm ball end power bit (PN65-6091). Use 4mm ball end hex wrench for screw (PN 65-6097).
- Internal connector that requires no machining
- Compatible with 10 and 25 Series profiles
- Infinite positioning along the T-Slot profile
- Two ways to install: Slide into the end of profile or install on captivated profiles with roll-in T-nut
- Holding force exceeding 300 lbs and torsional strength over 144 in-lbs.
- Left-handed barrel thread and self-retained screw to support ease of installation.
- Install barrel thread with 5mm ball end power bit (PN65-6091). Use 4mm ball end hex wrench for screw (PN 65-6097).
| ESD Safe | Yes |
| Weight | 0.033100 |
| Series | 10 Series, 25 Series |
| Material | Steel |
| Color | Silver |
| A | 1.259" (32.00mm) |
| B | 0.240" (6.10mm) |
| C | N/A |
| D | 0.390" (9.90mm) |
| E | M9 x 1.5 |
| F | M5 x 33mm SHCS |
| G | 0.571" (14.50mm) |
| H | 0.137" (3.50mm) |
- Internal connector that requires no machining
- Compatible with 10 and 25 Series profiles
- Infinite positioning along the T-Slot profile
- Two ways to install: Slide into the end of profile or install on captivated profiles with roll-in T-nut
- Holding force exceeding 300 lbs and torsional strength over 144 in-lbs.
- Left-handed barrel thread and self-retained screw to support ease of installation.
- Install barrel thread with 5mm ball end power bit (PN65-6091). Use 4mm ball end hex wrench for screw (PN 65-6097).
Product Specs
- Product Details
-
ESD Safe Yes Weight 0.033100 Series 10 Series, 25 Series Material Steel Color Silver A 1.259" (32.00mm) B 0.240" (6.10mm) C N/A D 0.390" (9.90mm) E M9 x 1.5 F M5 x 33mm SHCS G 0.571" (14.50mm) H 0.137" (3.50mm)
-
- Description
- Internal connector that requires no machining
- Compatible with 10 and 25 Series profiles
- Infinite positioning along the T-Slot profile
- Two ways to install: Slide into the end of profile or install on captivated profiles with roll-in T-nut
- Holding force exceeding 300 lbs and torsional strength over 144 in-lbs.
- Left-handed barrel thread and self-retained screw to support ease of installation.
- Install barrel thread with 5mm ball end power bit (PN65-6091). Use 4mm ball end hex wrench for screw (PN 65-6097).
-
