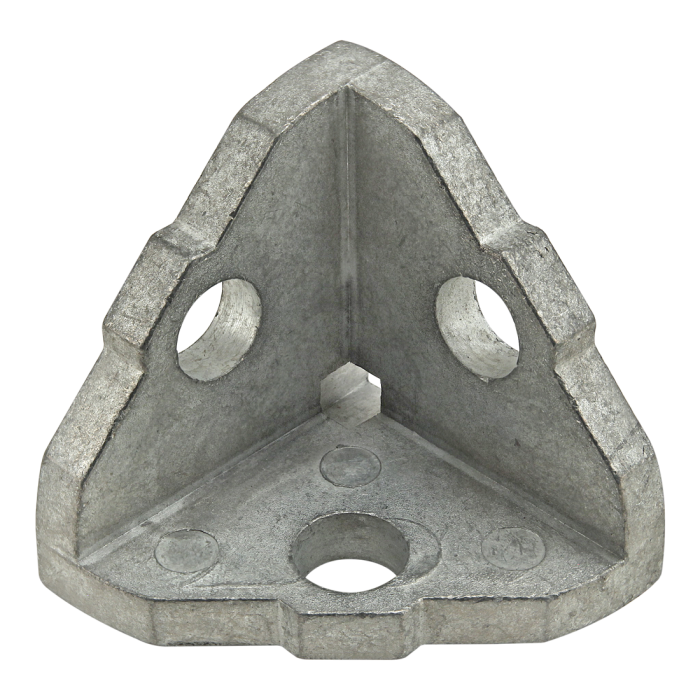

40 Series 3 Way - Triangular Corner Bracket
40 Series 3 Way - Triangular Corner Bracket
The 3 way - triangular corner bracket is a die-cast external fastening method that is typically used to create a corner connection between three profiles. It is a connection method that is recessed within the corner and offers stability. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - triangular corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
The 3 way - triangular corner bracket is a die-cast external fastening method that is typically used to create a corner connection between three profiles. It is a connection method that is recessed within the corner and offers stability. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - triangular corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | 40 Series |
| Material | Zinc |
| Finish | Natural |
| A | 37.20mm |
| B | 37.20mm |
| C | 5.00mm |
| D | 20.00mm |
| E | 9.00mm |
| F | 20.00mm |
| G | 4.00mm |
| H | 16.00mm |
| J | 8.00mm |
| Weight | 0.168200 |
The 3 way - triangular corner bracket is a die-cast external fastening method that is typically used to create a corner connection between three profiles. It is a connection method that is recessed within the corner and offers stability. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - triangular corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
Mount to Profile End
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 11-8320 | 3 | M8 x 20.00mm Button Head Socket Cap Screw (BHSCS) |
Product Specs
- Product Details
-
ESD Safe Yes Series 40 Series Material Zinc Finish Natural A 37.20mm B 37.20mm C 5.00mm D 20.00mm E 9.00mm F 20.00mm G 4.00mm H 16.00mm J 8.00mm Weight 0.168200
-
- Description
The 3 way - triangular corner bracket is a die-cast external fastening method that is typically used to create a corner connection between three profiles. It is a connection method that is recessed within the corner and offers stability. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - triangular corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Mount to Profile End
Series Part Number Qty Description 11-8320 3 M8 x 20.00mm Button Head Socket Cap Screw (BHSCS)
-
