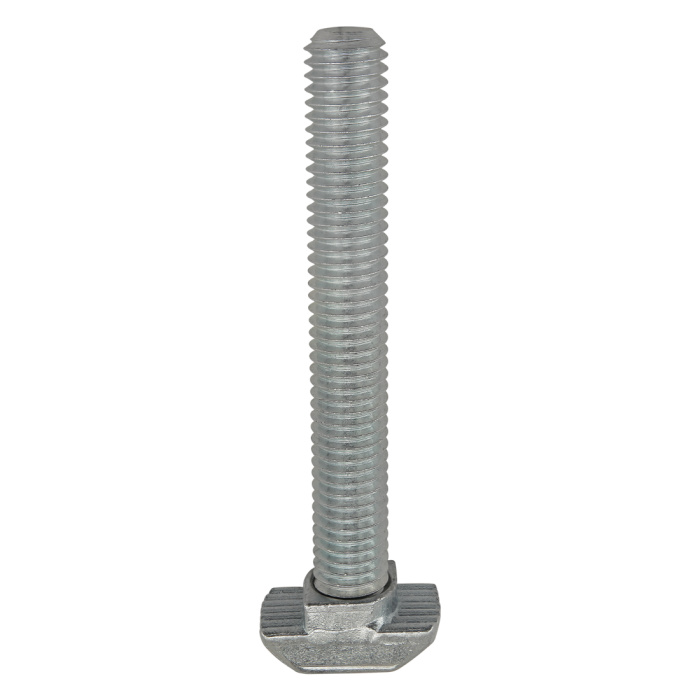

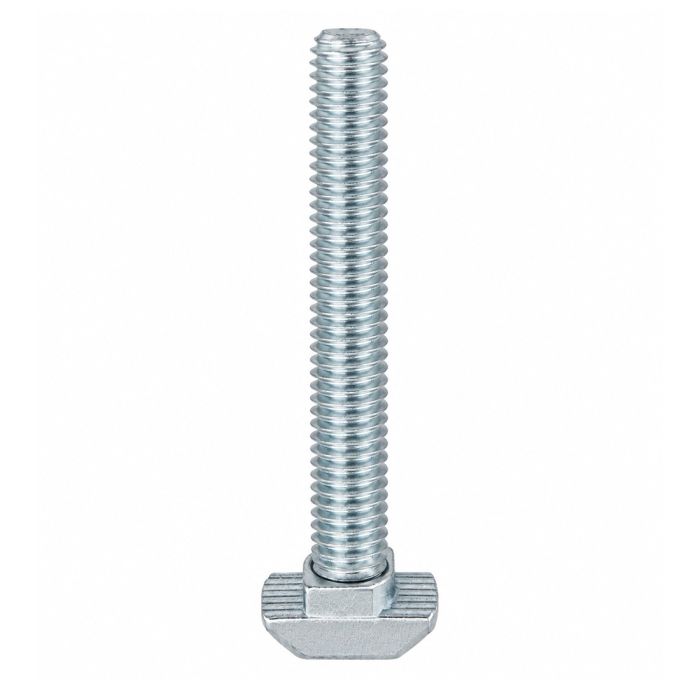

13177

Product Specs

• Product Details
  •

    Series	45 Series
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	19.00mm
    B	9.70mm
    C	5.80mm
    D (Length)	60.00mm
    E	9.70mm
    F	3.00mm
    G (Thread)	M8 x 1.25
    Weight	0.056000
