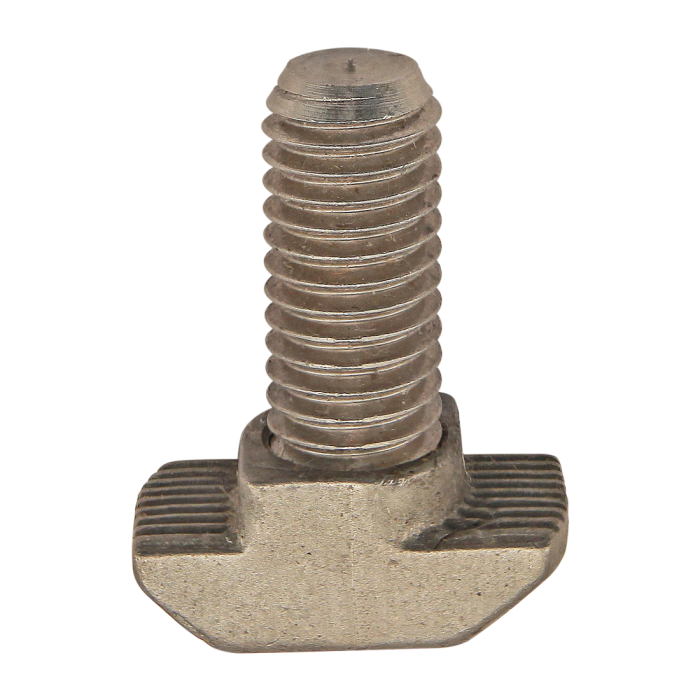

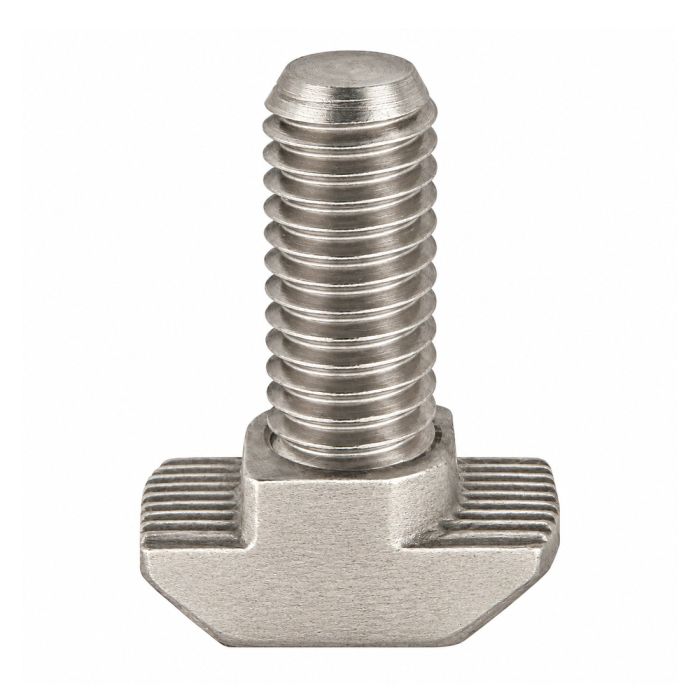

Product Specs

• Product Details
  •

    Series	45 Series
    Material	Stainless Steel
    Finish	Stainless
    Color	N/A
    A	19.00mm
    B	9.70mm
    C	5.80mm
    D (Length)	20.00mm
    E	9.70mm
    F	3.00mm
    G (Thread)	M8 x 1.25
    Weight	0.030000
