30 to 45 Series 4 Hole - Transition Hinge

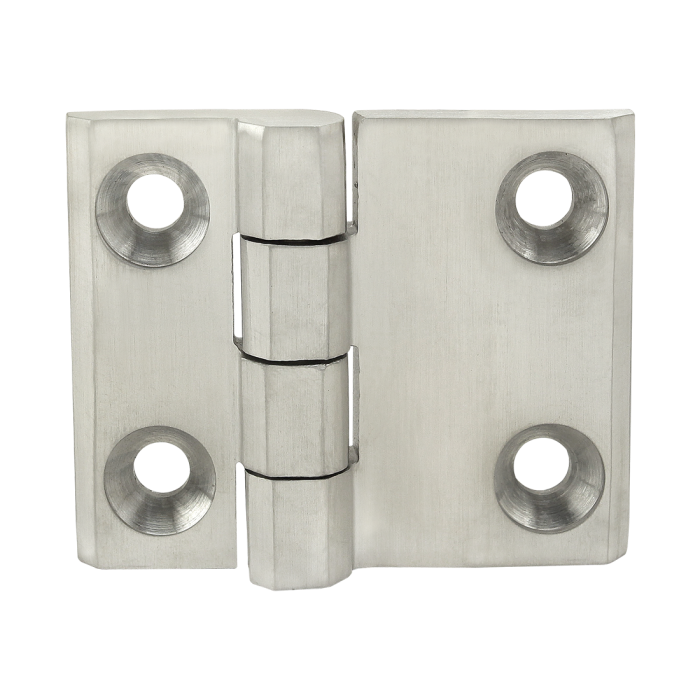

The 4 hole - transition hinge is available in stainless steel or black powder-coat zinc. It is commonly used to mount larger doors or two profiles. This hinge can be used as a transition from 30 to 45 series profiles and can be easily assembled with the suggested mounting hardware which can be found on the "Suggested Hardware" tab.
The 4 hole - transition hinge is available in stainless steel or black powder-coat zinc. It is commonly used to mount larger doors or two profiles. This hinge can be used as a transition from 30 to 45 series profiles and can be easily assembled with the suggested mounting hardware which can be found on the "Suggested Hardware" tab.
| Series | 30 Series to 45 Series |
| Material | Stainless-Steel |
| Grade | 316 |
| Finish | Stainless |
| Color | N/A |
| Process | Die Cast |
| Max Load | 60 Nm / 44 ft-Lbs. |
| A | 50.00mm |
| B | 30.00mm |
| C | 25.00mm |
| D | 38.00mm |
| E | M6 FHSCS |
| F | 28.00mm |
| G | 15.00mm |
| H | 6.00mm |
| J | 6.00mm |
| K | 6.00mm |
| L | 63.00mm |
| Weight | 0.283000 |
The 4 hole - transition hinge is available in stainless steel or black powder-coat zinc. It is commonly used to mount larger doors or two profiles. This hinge can be used as a transition from 30 to 45 series profiles and can be easily assembled with the suggested mounting hardware which can be found on the "Suggested Hardware" tab.
| Series | Part Number | Qty | Description | Select Qty / Add To Cart | |
|---|---|---|---|---|---|
 | 75-3585 | 2 | Bolt Assembly: M6 x 14.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc | ||
| And |  | 75-3587 | 2 | Bolt Assembly: M6 x 18.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc |
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 11-6718 | 2 | M6 x 18.00mm Flat Head Socket Cap Screw (FHSCS) | |
| 11-6065 | 2 | M6 Hex Nut | |
| 11-6041 | 2 | 6.51mm ID Washer |
