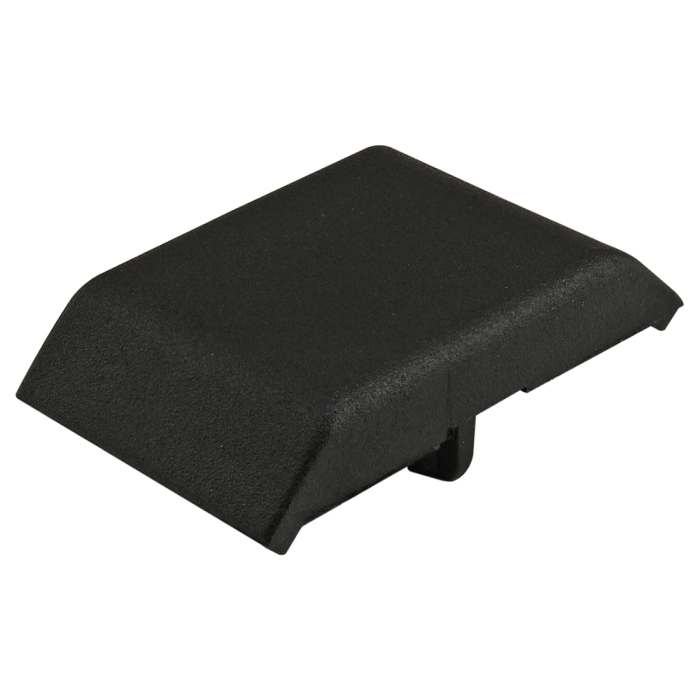

12031

Product Specs

• Product Details
  •

    Series	10 Series, 20 Series, 25 Series
    Material	PA6 GF 30
    A	9.50mm
    B	28.60mm
    C	2.00mm
    D	17.60mm
    Weight	0.004000
