14061

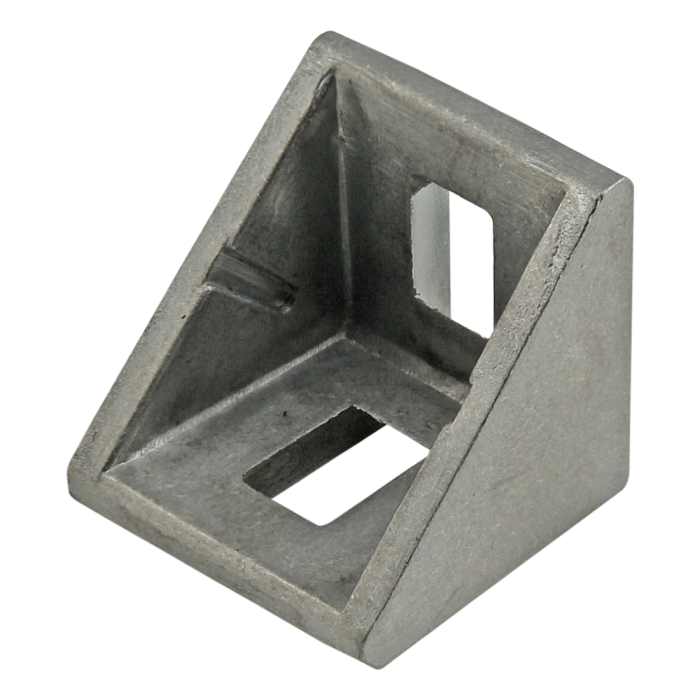

10 & 25 Series 2 Hole - 18mm Slotted Inside Corner Bracket with Dual Support
The 2 hole - 18mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | 10 Series, 25 Series |
| Material | Aluminum |
| Finish | Natural |
| Slot Tab | Yes |
| A | 18.00mm |
| B | 18.00mm |
| C | 2.00mm |
| D | 10.50mm |
| E | 9.00mm |
| F | 3.00mm |
| G | 7.00mm |
| H | 2.00mm |
| J | 5.30mm |
| K | 18.00mm |
| L | 6.00mm |
| Weight | 0.010000 |
The 2 hole - 18mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3426 | 2 | Bolt Assembly: 10-32 x .375" Black BHSCS and Standard Slide-In T-Nut - Black Zinc |
 | 75-3401 | 2 | Bolt Assembly: M5 x 10.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
