XDIY1603

In-Home Solution

Drawing Table & Bench

This drawing table and matching bench prove that your furniture can provide you with both functionality and a modern look. The table surface is adjustable to provide you with the exact angle for your comfort while allowing multiple users to change it to their needs.

Design your pieces to fit your style and space; height, length, width, and color are all completely customizable. Black anodized profiles and parts call attention to the modern, sleek look. The dowel rods can be stained to any color you pick what best fits your preference and taste.

XDIY1603

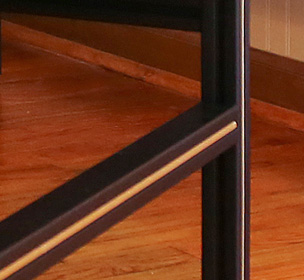

Smooth black anodized profiles give the items an eye-catching appeal, while closed-sided and radius profiles add a polished, modern look. The dark woodgrain panel coupled with stained dowel rods in the T-slot create a warming tone.
XDIY1603

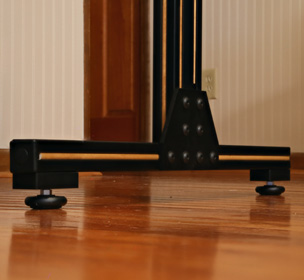

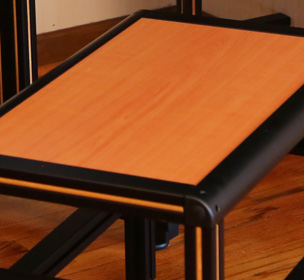

Change the table panel to accommodate your preferences; material and color can be tailored to your desire. The table and bench feature floor glides that work well on carpet and tiled areas and can be used to accommodate uneven surfaces.
XDIY1603
When your comfort is involved, you need a drawing table that is going to last. Aluminum T-slot profiles are stable and durable; you'll have a sturdy option that can withstand wear and tear.
XDIY1603

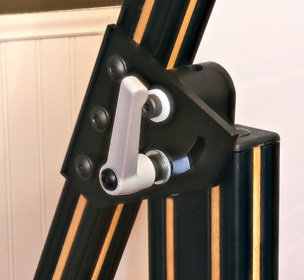

The drawing tabletop is adjustable so you can find the exact angle for your comfort level and fine-tune it, as needed. The built-in ledge provides easy access for your tools without getting in the way.
Click to download DIY Guide

Download FREE Drawing Files & Bill of Materials!

  • Download AutoCAD Files
  • Download SolidWorks Files
  • Download eDrawing Files
  • Download IGES Files
  • Download BOM Files
