R85-TU
Track Union Wide
Track Union Wide

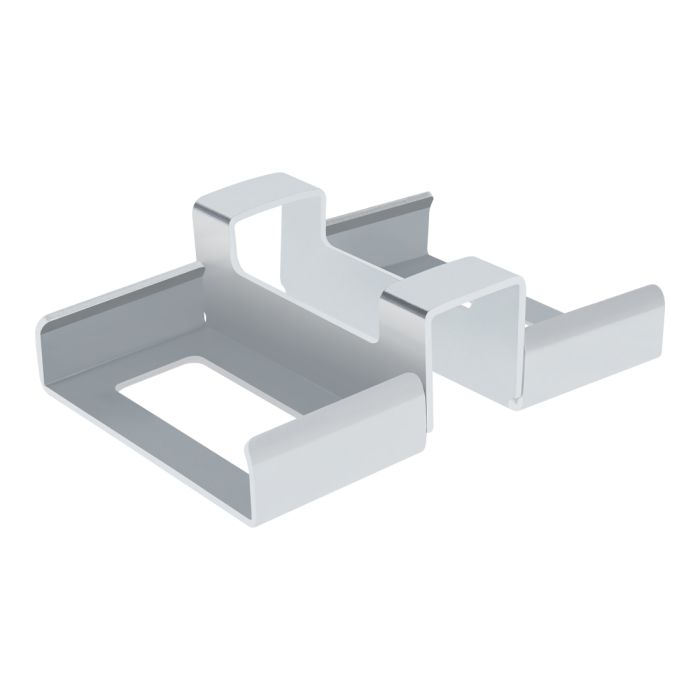

The R85-TU is an electrostatic discharge (ESD) compliant steel track union used to create angled extensions between R85-RT96 roller tracks. It allows a folded pipe junction that supports slopes up to 45°, making it ideal for drop sections in flow rack systems while maintaining smooth container movement.
- Electric conductivity (ESD)
- Works with all R85 parts and accessories
- Used to connect two roller sections
- Bends up to 45 degree angle
- Compatible with 10, 25 Series T-Slot profiles and 28mm pipes
A Flexpipe product
The R85-TU is an electrostatic discharge (ESD) compliant steel track union used to create angled extensions between R85-RT96 roller tracks. It allows a folded pipe junction that supports slopes up to 45°, making it ideal for drop sections in flow rack systems while maintaining smooth container movement.
- Electric conductivity (ESD)
- Works with all R85 parts and accessories
- Used to connect two roller sections
- Bends up to 45 degree angle
- Compatible with 10, 25 Series T-Slot profiles and 28mm pipes
A Flexpipe product
| ESD Safe | Yes |
| Weight | 0.578000 |
| Series | 10 Series, 25 Series, Pipe |
| Material | Steel |
| Color | Bright Zinc |
| A | 3.566" (90.60mm) |
| B | 5.217" (132.52mm) |
| C | 1.479" (37.59mm) |
| D | 1.102" (28.00mm) |
The R85-TU is an electrostatic discharge (ESD) compliant steel track union used to create angled extensions between R85-RT96 roller tracks. It allows a folded pipe junction that supports slopes up to 45°, making it ideal for drop sections in flow rack systems while maintaining smooth container movement.
- Electric conductivity (ESD)
- Works with all R85 parts and accessories
- Used to connect two roller sections
- Bends up to 45 degree angle
- Compatible with 10, 25 Series T-Slot profiles and 28mm pipes
A Flexpipe product
