EW-4ESB

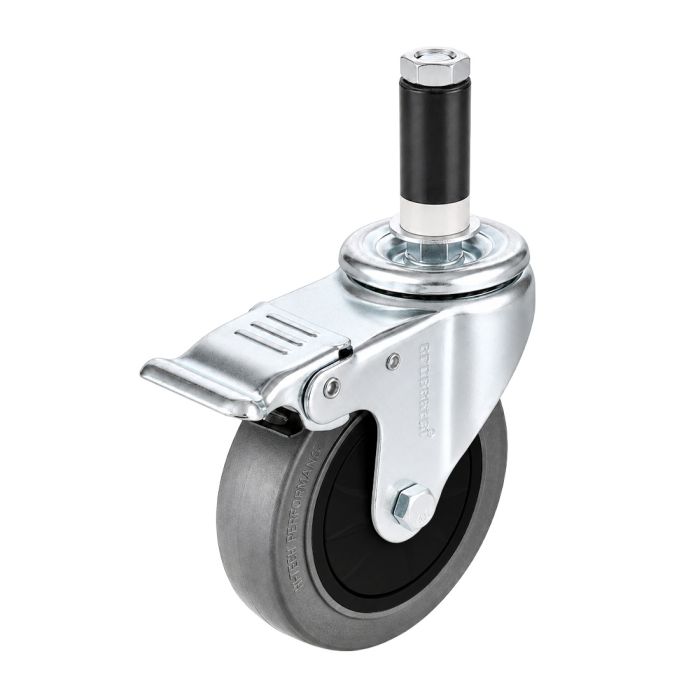

4" ESD Swivel Stem Caster with Brake
The 4" casters are made for carts weighing more than 400 pounds, larger carts that are greater than 24" wide and 48" long, l onger trips that don't exceed 100 feet maximum, and higher frequency trips. This is ideal for use in mobile carts and material handling solutions.
- Swivel stem caster with brake and a precision ball bearing.
- Stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place
- Caster is anti-static, making it ideal for environments where static discharge must be managed or prevented
- Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
- Loading capacity of 250 pounds (113.4 kg)
- Maximum speed of 2.5 Mph.(4.02 Km/H)
- Use the F-BUS component when this caster is used with the EP-96-ST pipe.
A Flexpipe Product
The 4" casters are made for carts weighing more than 400 pounds, larger carts that are greater than 24" wide and 48" long, l onger trips that don't exceed 100 feet maximum, and higher frequency trips. This is ideal for use in mobile carts and material handling solutions.
- Swivel stem caster with brake and a precision ball bearing.
- Stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place
- Caster is anti-static, making it ideal for environments where static discharge must be managed or prevented
- Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
- Loading capacity of 250 pounds (113.4 kg)
- Maximum speed of 2.5 Mph.(4.02 Km/H)
- Use the F-BUS component when this caster is used with the EP-96-ST pipe.
A Flexpipe Product
| ESD Safe | Yes |
| Weight | 1.760000 |
| Series | Pipe |
| Type | Swivel with Brake |
| Material | Thermoplastic Rubber |
| Color | Gray Wheels / Black Rims |
| Load Capacity | 250 Lbs (113kg) |
| Stem Size | M12 x 2.25” (57.15mm) |
| Wheel Diameter | 4.000” (100.00mm) |
| Caster Height | 5.000” (127.00mm) |
| Wheel Width | 1.125” (28.00mm) |
| Max Speed | 2.5 mph |
The 4" casters are made for carts weighing more than 400 pounds, larger carts that are greater than 24" wide and 48" long, l onger trips that don't exceed 100 feet maximum, and higher frequency trips. This is ideal for use in mobile carts and material handling solutions.
- Swivel stem caster with brake and a precision ball bearing.
- Stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place
- Caster is anti-static, making it ideal for environments where static discharge must be managed or prevented
- Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
- Loading capacity of 250 pounds (113.4 kg)
- Maximum speed of 2.5 Mph.(4.02 Km/H)
- Use the F-BUS component when this caster is used with the EP-96-ST pipe.
A Flexpipe Product
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Weight 1.760000 Series Pipe Type Swivel with Brake Material Thermoplastic Rubber Color Gray Wheels / Black Rims Load Capacity 250 Lbs (113kg) Stem Size M12 x 2.25” (57.15mm) Wheel Diameter 4.000” (100.00mm) Caster Height 5.000” (127.00mm) Wheel Width 1.125” (28.00mm) Max Speed 2.5 mph
-
- Description
The 4" casters are made for carts weighing more than 400 pounds, larger carts that are greater than 24" wide and 48" long, l onger trips that don't exceed 100 feet maximum, and higher frequency trips. This is ideal for use in mobile carts and material handling solutions.
- Swivel stem caster with brake and a precision ball bearing.
- Stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place
- Caster is anti-static, making it ideal for environments where static discharge must be managed or prevented
- Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
- Loading capacity of 250 pounds (113.4 kg)
- Maximum speed of 2.5 Mph.(4.02 Km/H)
- Use the F-BUS component when this caster is used with the EP-96-ST pipe.
A Flexpipe Product
-
