EW-4EF

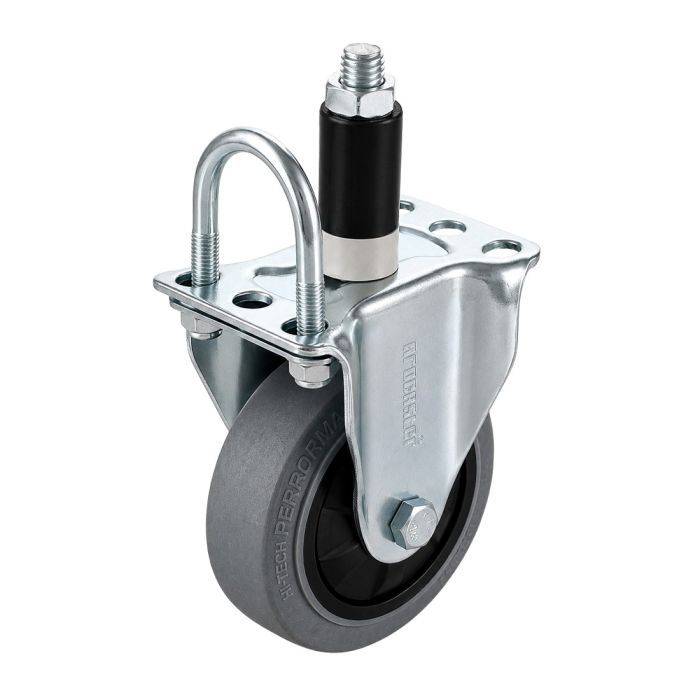

4" ESD Rigid Stem Caster
Electric conductivity (ESD) 4 inches rigid stem caster with a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5 mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place. You will need to secure the wheel by placing it on a connector with WF-U5/16 U-Bolt (included with the caster). Bolt M12 (12 mm) Length 2 1/4" (57.15 mm). EW-4EF has a non-electric conductivity version: W-4EF. All casters are equipped with a precision ball bearing.
Use the F-BUS component when this caster is used with the EP-96-ST pipe. 4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
A Flexpipe Product
Electric conductivity (ESD) 4 inches rigid stem caster with a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5 mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place. You will need to secure the wheel by placing it on a connector with WF-U5/16 U-Bolt (included with the caster). Bolt M12 (12 mm) Length 2 1/4" (57.15 mm). EW-4EF has a non-electric conductivity version: W-4EF. All casters are equipped with a precision ball bearing.
Use the F-BUS component when this caster is used with the EP-96-ST pipe. 4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
A Flexpipe Product
| ESD Safe | Yes |
| Weight | 1.400000 |
| Series | Pipe |
| Type | Rigid |
| Material | Thermoplastic Rubber |
| Color | Gray Wheels / Gray Rims |
| Load Capacity | 250 lbs (113 kg) |
| Stem Size | M12 x 2.25” (57.15mm) |
| Wheel Diameter | 4.000” (100.00mm) |
| Caster Height | 5.000” (127.00mm) |
| Wheel Width | 1.125” (28.00mm) |
| Max Speed | 2.5 mph |
Electric conductivity (ESD) 4 inches rigid stem caster with a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5 mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place. You will need to secure the wheel by placing it on a connector with WF-U5/16 U-Bolt (included with the caster). Bolt M12 (12 mm) Length 2 1/4" (57.15 mm). EW-4EF has a non-electric conductivity version: W-4EF. All casters are equipped with a precision ball bearing.
Use the F-BUS component when this caster is used with the EP-96-ST pipe. 4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
A Flexpipe Product
Product Specs
- Product Details
-
ESD Safe Yes Weight 1.400000 Series Pipe Type Rigid Material Thermoplastic Rubber Color Gray Wheels / Gray Rims Load Capacity 250 lbs (113 kg) Stem Size M12 x 2.25” (57.15mm) Wheel Diameter 4.000” (100.00mm) Caster Height 5.000” (127.00mm) Wheel Width 1.125” (28.00mm) Max Speed 2.5 mph
-
- Description
Electric conductivity (ESD) 4 inches rigid stem caster with a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5 mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place. You will need to secure the wheel by placing it on a connector with WF-U5/16 U-Bolt (included with the caster). Bolt M12 (12 mm) Length 2 1/4" (57.15 mm). EW-4EF has a non-electric conductivity version: W-4EF. All casters are equipped with a precision ball bearing.
Use the F-BUS component when this caster is used with the EP-96-ST pipe. 4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
A Flexpipe Product
-
