EW-3ESB

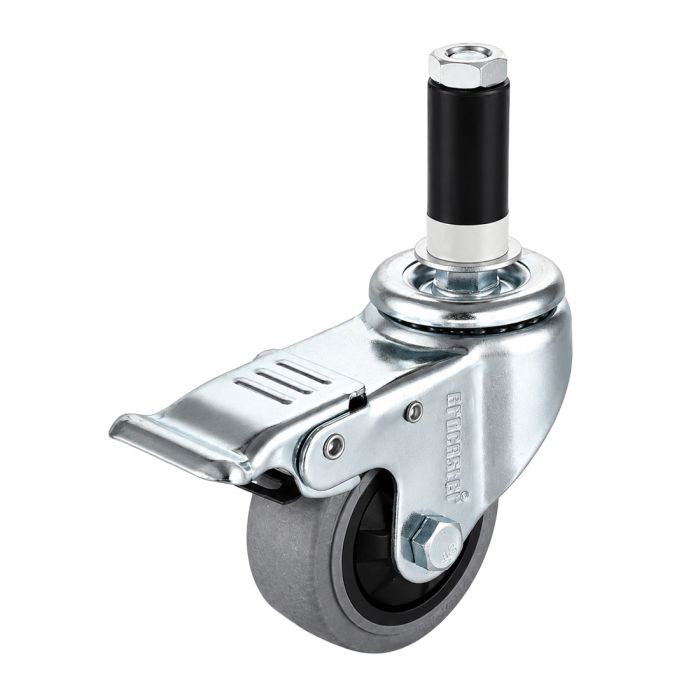

3" ESD Swivel Stem Caster with Brake
The 3" casters are made for carts weighting less than 400 pounds (226.8 kg), narrow carts that vary from 16" to 24" wide, short distance trips of up to 30 feet, or infrequent uses.
- Swivel stem caster with pedal brake and a precision ball bearing
- Caster is anti-static, making it ideal for environments where static discharge must be managed or prevented
- Stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place.
- Loading capacity of 150 pounds (68 kg)
- Maximum speed of 2.5 mph (4.02 km/h)
- Bolt size M12 (12 mm) Length 2 1/4" (57.15 mm)
- Suggest using the F-BUS to join this caster with a stainless steel pipe (ESD).
A Flexpipe Product
The 3" casters are made for carts weighting less than 400 pounds (226.8 kg), narrow carts that vary from 16" to 24" wide, short distance trips of up to 30 feet, or infrequent uses.
- Swivel stem caster with pedal brake and a precision ball bearing
- Caster is anti-static, making it ideal for environments where static discharge must be managed or prevented
- Stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place.
- Loading capacity of 150 pounds (68 kg)
- Maximum speed of 2.5 mph (4.02 km/h)
- Bolt size M12 (12 mm) Length 2 1/4" (57.15 mm)
- Suggest using the F-BUS to join this caster with a stainless steel pipe (ESD).
A Flexpipe Product
| ESD Safe | Yes |
| Weight | 1.166000 |
| Series | Pipe |
| Type | Swivel with Brake |
| Material | Thermoplastic Rubber |
| Color | Gray Wheels / Black Rims |
| Load Capacity | 150 pounds (68 kg) |
| Stem Size | M12 x 2.25” (57.15mm) |
| Wheel Diameter | 3.000” (74.00mm) |
| Caster Height | 4.125” (104.00mm) |
| Wheel Width | 1.125” (28.00mm) |
| Max Speed | 2.5 mph |
The 3" casters are made for carts weighting less than 400 pounds (226.8 kg), narrow carts that vary from 16" to 24" wide, short distance trips of up to 30 feet, or infrequent uses.
- Swivel stem caster with pedal brake and a precision ball bearing
- Caster is anti-static, making it ideal for environments where static discharge must be managed or prevented
- Stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place.
- Loading capacity of 150 pounds (68 kg)
- Maximum speed of 2.5 mph (4.02 km/h)
- Bolt size M12 (12 mm) Length 2 1/4" (57.15 mm)
- Suggest using the F-BUS to join this caster with a stainless steel pipe (ESD).
A Flexpipe Product
Product Specs
- Product Details
-
ESD Safe Yes Weight 1.166000 Series Pipe Type Swivel with Brake Material Thermoplastic Rubber Color Gray Wheels / Black Rims Load Capacity 150 pounds (68 kg) Stem Size M12 x 2.25” (57.15mm) Wheel Diameter 3.000” (74.00mm) Caster Height 4.125” (104.00mm) Wheel Width 1.125” (28.00mm) Max Speed 2.5 mph
-
- Description
The 3" casters are made for carts weighting less than 400 pounds (226.8 kg), narrow carts that vary from 16" to 24" wide, short distance trips of up to 30 feet, or infrequent uses.
- Swivel stem caster with pedal brake and a precision ball bearing
- Caster is anti-static, making it ideal for environments where static discharge must be managed or prevented
- Stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place.
- Loading capacity of 150 pounds (68 kg)
- Maximum speed of 2.5 mph (4.02 km/h)
- Bolt size M12 (12 mm) Length 2 1/4" (57.15 mm)
- Suggest using the F-BUS to join this caster with a stainless steel pipe (ESD).
A Flexpipe Product
-
