AO-RAIL-A

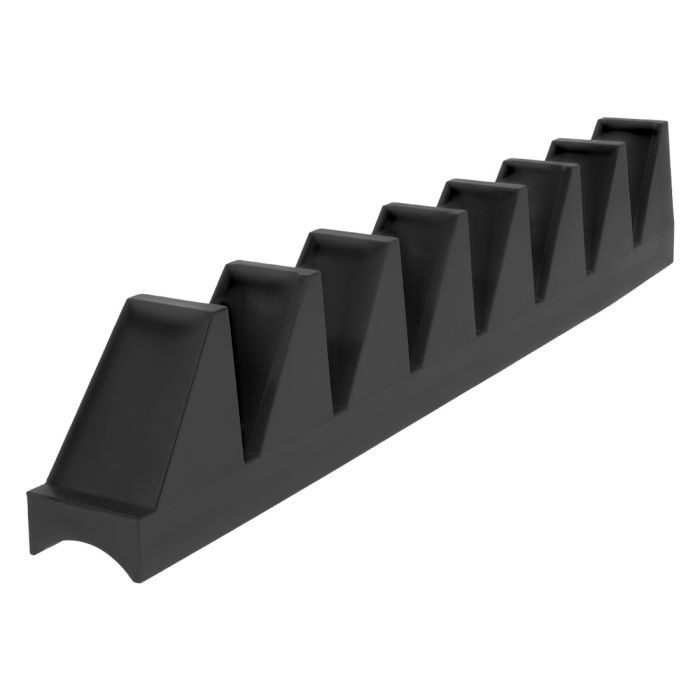

Panel Angle Support Rail
Panel Angle Support Rail
- Guides, separates, and holds parts or products securely in position
- Features integrated stops and mounting holes for easy installation
- Ideal for picking carts, storage solutions, workstations, and other materialhandling applications
- Durable urethane construction withstands heavy friction, scratching, and tearing better than standard rubber or plastic
- Resists exposure to industrial oils, greases, and cleaning chemicals
- Helps protect sharp metal or glass panel edges from impact and damage
- Features a rounded profile designed to fit securely onto 28 mm diameter round pipe for quick, easy installation
- Guides, separates, and holds parts or products securely in position
- Features integrated stops and mounting holes for easy installation
- Ideal for picking carts, storage solutions, workstations, and other materialhandling applications
- Durable urethane construction withstands heavy friction, scratching, and tearing better than standard rubber or plastic
- Resists exposure to industrial oils, greases, and cleaning chemicals
- Helps protect sharp metal or glass panel edges from impact and damage
- Features a rounded profile designed to fit securely onto 28 mm diameter round pipe for quick, easy installation
| ESD Safe | No |
| Series | Pipe |
| Material | Urethane |
| Color | Black |
| A | .984” (25.00mm) |
| B | 10.055” (255.40mm) |
| C | 1.255” (31.90mm) |
| D | 2.515” (63.90mm) |
| E | 1.059” (26.90mm) |
| F | .208” (5.30mm) |
| G | 1.173” (29.80mm) |
| H | 1.645” (41.80mm) |
| J | .196” (5.00mm) |
| Weight | 0.196000 |
- Guides, separates, and holds parts or products securely in position
- Features integrated stops and mounting holes for easy installation
- Ideal for picking carts, storage solutions, workstations, and other materialhandling applications
- Durable urethane construction withstands heavy friction, scratching, and tearing better than standard rubber or plastic
- Resists exposure to industrial oils, greases, and cleaning chemicals
- Helps protect sharp metal or glass panel edges from impact and damage
- Features a rounded profile designed to fit securely onto 28 mm diameter round pipe for quick, easy installation
Mount to Pipe
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | F-A858 | 4 | #8-5/8" Self Drilling Screw with Square Bit Head |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series Pipe Material Urethane Color Black A .984” (25.00mm) B 10.055” (255.40mm) C 1.255” (31.90mm) D 2.515” (63.90mm) E 1.059” (26.90mm) F .208” (5.30mm) G 1.173” (29.80mm) H 1.645” (41.80mm) J .196” (5.00mm) Weight 0.196000
-
- Description
- Guides, separates, and holds parts or products securely in position
- Features integrated stops and mounting holes for easy installation
- Ideal for picking carts, storage solutions, workstations, and other materialhandling applications
- Durable urethane construction withstands heavy friction, scratching, and tearing better than standard rubber or plastic
- Resists exposure to industrial oils, greases, and cleaning chemicals
- Helps protect sharp metal or glass panel edges from impact and damage
- Features a rounded profile designed to fit securely onto 28 mm diameter round pipe for quick, easy installation
-
Sugg. Hardware
Mount to Pipe
Series Part Number Qty Description F-A858 4 #8-5/8" Self Drilling Screw with Square Bit Head
-
