9351

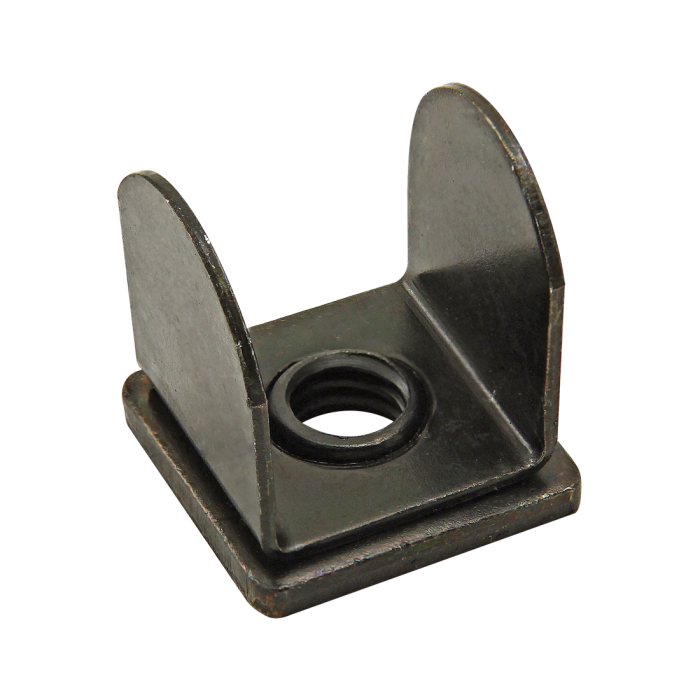

Threaded End Bracket: 3/8-16
Threaded End Bracket: 3/8-16
The threaded end bracket is made of steel and is used to add a leveling foot to a Quick Frame profile.
| ESD Safe | Yes |
| Series | Quick Frame |
| Material | Steel |
| Grade | C1010 |
| Process | Stamped |
| Finish | Plain |
| A | .968" |
| B | 3/8-16 |
| C | .865" |
| D | .125" |
| E | .875" |
| F | .968" |
| G | .843" |
| Weight | 0.054000 |
The threaded end bracket is made of steel and is used to add a leveling foot to a Quick Frame profile.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Series Quick Frame Material Steel Grade C1010 Process Stamped Finish Plain A .968" B 3/8-16 C .865" D .125" E .875" F .968" G .843" Weight 0.054000
-
- Description
The threaded end bracket is made of steel and is used to add a leveling foot to a Quick Frame profile.
-
