6705
10 Series Single-Keyed UniBearing™ Pad
10 Series Single-Keyed UniBearing™ Pad

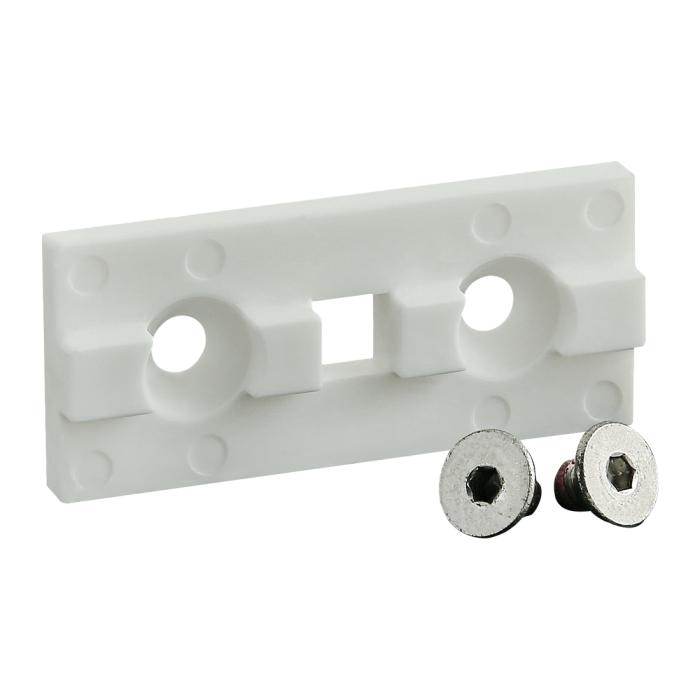

The single-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a single key and mounts to the profile using stainless steel flathead socket cap screws that have Loctite®. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation. The pad includes holes for mounting the hardware or brake kits as well as all mounting hardware.
....................................................................................................................................................................................................................................................
Total Price
$2.05| Series | 10 Series |
| Material | UHMW PE |
| Process | Injection Molded |
| Finish | Smooth |
| Color | White |
| A | .812" |
| B | .433" |
| C | .375" |
| D | .246" |
| E | .406" |
| F | .172" |
| G | 1.000" |
| H | .250" |
| J | 1.865" |
| K | .150" |
| L | .283" |
| M | .246" |
| Weight | 0.012000 |
The single-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a single key and mounts to the profile using stainless steel flathead socket cap screws that have Loctite®. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation. The pad includes holes for mounting the hardware or brake kits as well as all mounting hardware.
Mount Pad to Bearing Housing
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3649 | 2 | 8-32 x .250" Flat Head Socket Cap Screw (FHSCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material UHMW PE Process Injection Molded Finish Smooth Color White A .812" B .433" C .375" D .246" E .406" F .172" G 1.000" H .250" J 1.865" K .150" L .283" M .246" Weight 0.012000
-
- Description
The single-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a single key and mounts to the profile using stainless steel flathead socket cap screws that have Loctite®. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation. The pad includes holes for mounting the hardware or brake kits as well as all mounting hardware.
-
Incl. Hardware
Mount Pad to Bearing Housing
Series Part Number Qty Description Select Qty / Add To Cart 3649 2 8-32 x .250" Flat Head Socket Cap Screw (FHSCS)
