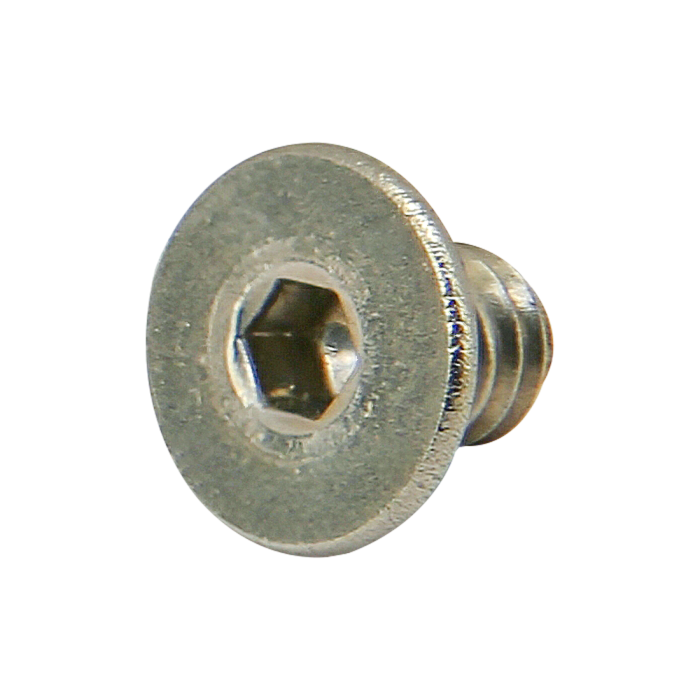

3649

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Stainless-Steel
    Finish	Stainless
    Color	N/A
    A	.335"
    B	3/32
    C	.105"
    D (Length)	.250"
    E (Thread)	8-32
    Thread Length	Full Thread
    Weight	0.002000
