65-2908

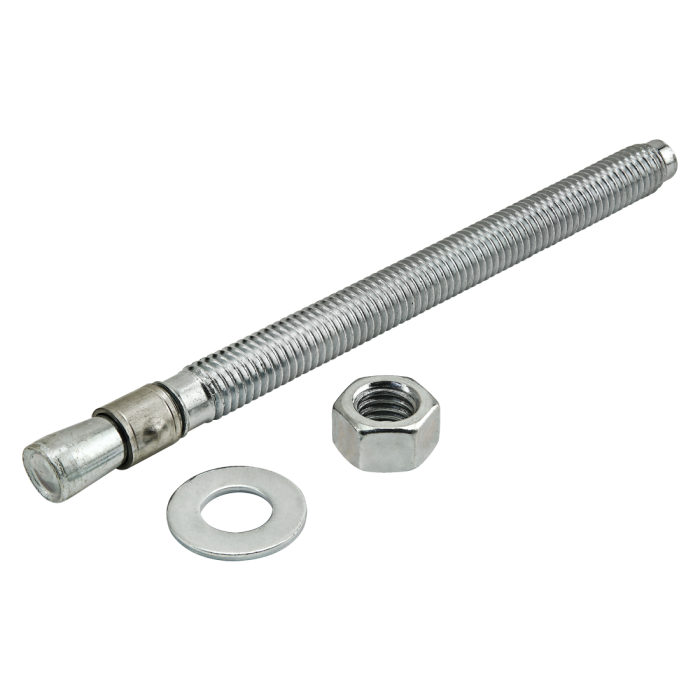

Wedge Floor Anchor: 1/2-13 x 177.80mm
Wedge Floor Anchor: 1/2-13 x 177.80mm
The wedge floor anchor is commonly used with floor to frame options to mount fixtures directly to a solid concrete floor. It’s made of high-strength carbon steel for increased durability and longevity and includes a hex nut and washer.
Series | Metric |
Material | Steel |
Finish | Zinc |
A | 177.80 mm |
B | 129.22mm |
C | 57.16mm |
D | 1/2-13 |
Tension | 4083.70 kg |
Shear | 3627.85 kg |
Weight | 0.374000 |

The wedge floor anchor is commonly used with floor to frame options to mount fixtures directly to a solid concrete floor. It’s made of high-strength carbon steel for increased durability and longevity and includes a hex nut and washer.
Product Specs
- Product Details
-
Series Metric Material Steel Finish Zinc A 177.80 mm B 129.22mm C 57.16mm D 1/2-13 Tension 4083.70 kg Shear 3627.85 kg Weight 0.374000
-
- Description
The wedge floor anchor is commonly used with floor to frame options to mount fixtures directly to a solid concrete floor. It’s made of high-strength carbon steel for increased durability and longevity and includes a hex nut and washer.
-
