65-2901

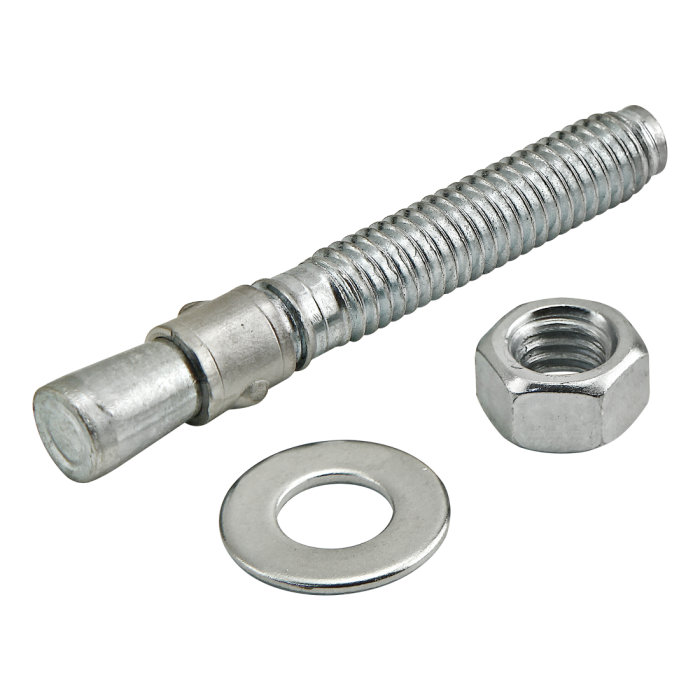

Wedge Floor Anchor: 3/8-16 x 69.85mm
Wedge Floor Anchor: 3/8-16 x 69.85mm
The wedge floor anchor is commonly used with floor to frame options to mount fixtures directly to a solid concrete floor. It’s made of high-strength carbon steel for increased durability and longevity and includes a hex nut and washer.
| ESD Safe | Yes |
| Series | Metric |
| Material | Steel |
| Finish | Zinc |
| A | 69.85mm |
| B | 33.40mm |
| C | 38.10mm |
| D | 3/8-16 |
| Tension | 1460.10 kg |
| Shear | 1827.50 kg |
| Weight | 0.094000 |
The wedge floor anchor is commonly used with floor to frame options to mount fixtures directly to a solid concrete floor. It’s made of high-strength carbon steel for increased durability and longevity and includes a hex nut and washer.
Product Specs
- Product Details
-
ESD Safe Yes Series Metric Material Steel Finish Zinc A 69.85mm B 33.40mm C 38.10mm D 3/8-16 Tension 1460.10 kg Shear 1827.50 kg Weight 0.094000
-
- Description
The wedge floor anchor is commonly used with floor to frame options to mount fixtures directly to a solid concrete floor. It’s made of high-strength carbon steel for increased durability and longevity and includes a hex nut and washer.
-
