25-2416-Black

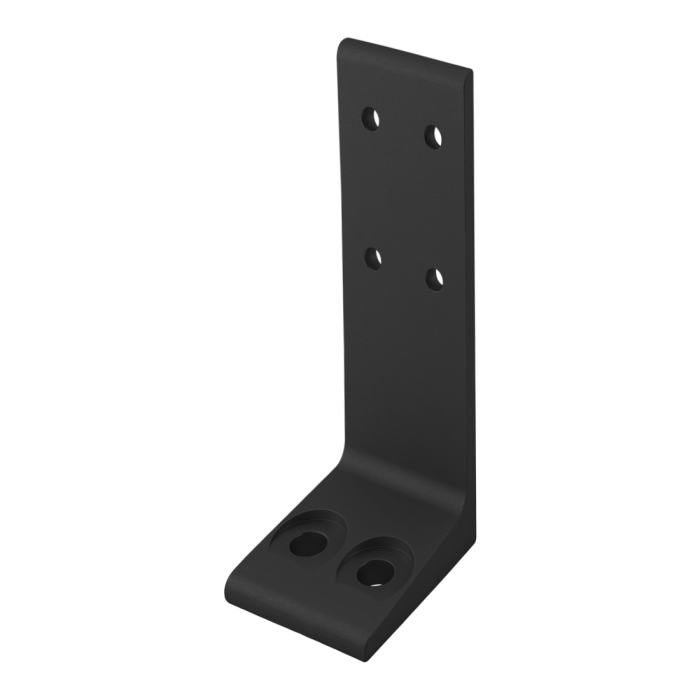

25 Series 50mm Economy Floor Mount Base Plate
25 Series 50mm Economy Floor Mount Base Plate
The economy floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts directly to the T-slot to allow vertical adjustments and is designed with countersunk holes to incorporate floor anchors.
This item requires a longer lead time. Please see Shipping Schedule for
"Products Requiring Additional Anodizing".
| ESD Safe | No |
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | 60.00mm |
| B | 20.00mm |
| C | 50.00mm |
| D | 12.50mm |
| E | 25.00mm |
| F | 6.30mm |
| G | 36.00mm |
| H | 12.50mm |
| J | 25.00mm |
| K | 10.49mm |
| L | 8.00mm |
| M | 22.00mm |
| N | 6.00mm |
| P | 140.00mm |
| Q | 56.00mm |
| Weight | 0.370000 |
The economy floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts directly to the T-slot to allow vertical adjustments and is designed with countersunk holes to incorporate floor anchors.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3412 | 2 To 6 | Bolt Assembly: M6 x 12.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 25 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Process Milled A 60.00mm B 20.00mm C 50.00mm D 12.50mm E 25.00mm F 6.30mm G 36.00mm H 12.50mm J 25.00mm K 10.49mm L 8.00mm M 22.00mm N 6.00mm P 140.00mm Q 56.00mm Weight 0.370000
-
- Description
- The economy floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts directly to the T-slot to allow vertical adjustments and is designed with countersunk holes to incorporate floor anchors.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 75-3412 2 To 6 Bolt Assembly: M6 x 12.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
-
