65-2730
Locking Plastic Panel Grabber Handle

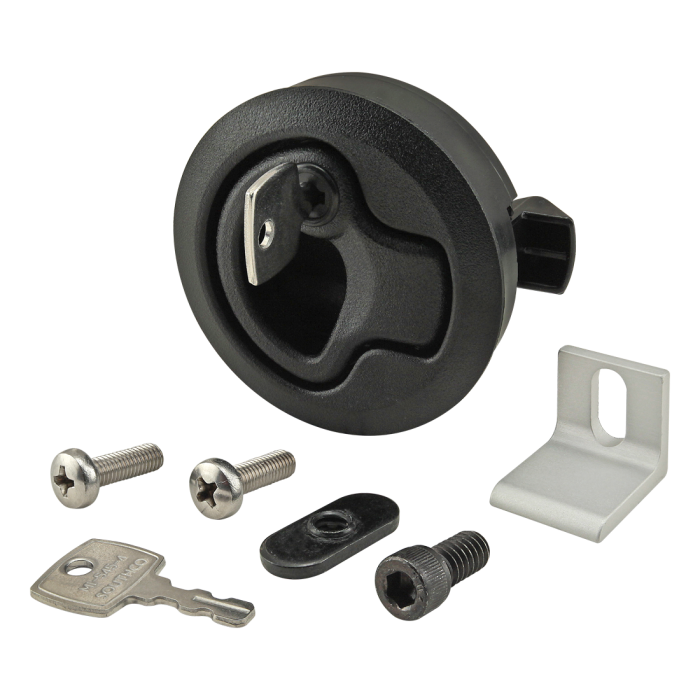

The locking plastic panel Grabber™ handle is comprised of a black polycarbonate slam action latch, handle, and lock, making it a high-strength option. A striker plate is also included. The slam latch engages the handle to help create the closing connection. The locking plastic panel Grabber™ handle can be opened from either side of the door and mounts to panels between .075 and .275 inches (2mm-7mm). The mounting hardware is included.
| ESD Safe | No |
| Series | 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series |
| Material | PC/PBT Blend |
| Process | Injection Molded |
| Color | Black |
| A | 2mm to 7mm |
| B | 61.30mm |
| C | 49.70mm |
| D | 25.40mm |
| E | 25.40mm |
| F | 19.05mm |
| G | 19.05mm |
| Weight | 0.178000 |
The locking plastic panel Grabber™ handle is comprised of a black polycarbonate slam action latch, handle, and lock, making it a high-strength option. A striker plate is also included. The slam latch engages the handle to help create the closing connection. The locking plastic panel Grabber™ handle can be opened from either side of the door and mounts to panels between .075 and .275 inches (2mm-7mm). The mounting hardware is included.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
   | 3058 | 1 | 1/4-20 x .375" Socket Head Cap Screw (SHCS) |
  | 3062 | 1 | 1/4-20 x .500" Socket Head Cap Screw (SHCS) |
| 3382 | 1 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 11-6514 | 1 | M6 x 14.00mm Socket Head Cap Screw (SHCS) |
| 14126 | 1 | M6 Slide-in Economy T-Nut Block |
Product Specs
- Product Details
-
ESD Safe No Series 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series Material PC/PBT Blend Process Injection Molded Color Black A 2mm to 7mm B 61.30mm C 49.70mm D 25.40mm E 25.40mm F 19.05mm G 19.05mm Weight 0.178000
-
- Description
- The locking plastic panel Grabber™ handle is comprised of a black polycarbonate slam action latch, handle, and lock, making it a high-strength option. A striker plate is also included. The slam latch engages the handle to help create the closing connection. The locking plastic panel Grabber™ handle can be opened from either side of the door and mounts to panels between .075 and .275 inches (2mm-7mm). The mounting hardware is included.
- Incl. Hardware
- Sugg. Hardware
-
