65-2342

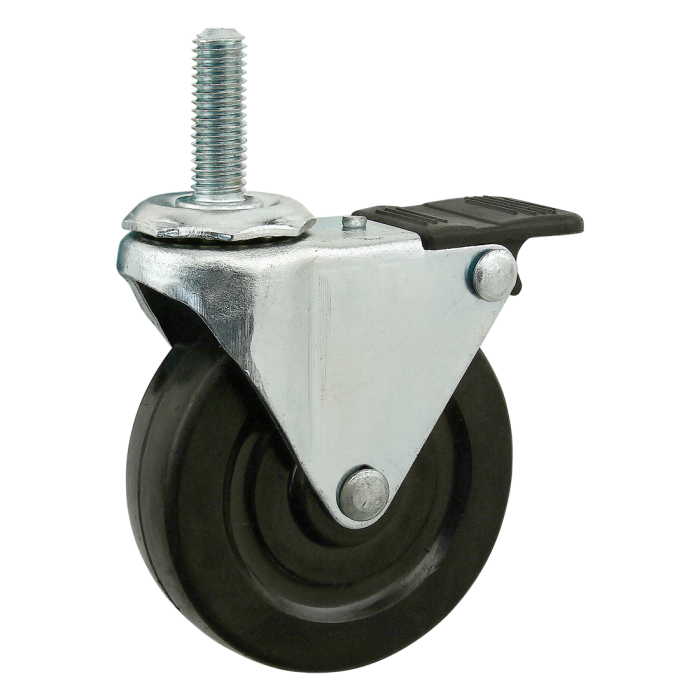

Threaded Stem Swivel Caster: M10 x 30mm
Threaded Stem Swivel Caster: M10 x 30mm
The threaded stem swivel caster is a foot that adds mobility to an application and can mount directly to a T-slot profile end, or to the profile side using a base plate. There are options available with a side or top mount brake kit as well as varieties without a brake. The swivel enables easy movement and pivot turns. It is oil resistant, making it ideal for use in industrial settings such as mobile carts and workstations.
The threaded stem swivel caster is a foot that adds mobility to an application and can mount directly to a T-slot profile end, or to the profile side using a base plate. There are options available with a side or top mount brake kit as well as varieties without a brake. The swivel enables easy movement and pivot turns. It is oil resistant, making it ideal for use in industrial settings such as mobile carts and workstations.
Total Price
................................................................................................................................| Series | Metric, Ready Tube |
| Material | Steel / Soft Rubber |
| Finish | Zinc |
| Color | Black |
| Brake | Top |
| A | 75.00mm |
| B | 89.70mm |
| C | 30.00mm |
| D | 73.03mm |
| E | M10 x 1.5 |
| Load Height | 89.70mm |
| Load Capacity | 45.36 kg |
| Weight | 0.693000 |
The threaded stem swivel caster is a foot that adds mobility to an application and can mount directly to a T-slot profile end, or to the profile side using a base plate. There are options available with a side or top mount brake kit as well as varieties without a brake. The swivel enables easy movement and pivot turns. It is oil resistant, making it ideal for use in industrial settings such as mobile carts and workstations.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series Metric, Ready Tube Material Steel / Soft Rubber Finish Zinc Color Black Brake Top A 75.00mm B 89.70mm C 30.00mm D 73.03mm E M10 x 1.5 Load Height 89.70mm Load Capacity 45.36 kg Weight 0.693000
-
- Description
The threaded stem swivel caster is a foot that adds mobility to an application and can mount directly to a T-slot profile end, or to the profile side using a base plate. There are options available with a side or top mount brake kit as well as varieties without a brake. The swivel enables easy movement and pivot turns. It is oil resistant, making it ideal for use in industrial settings such as mobile carts and workstations.
