65-2282

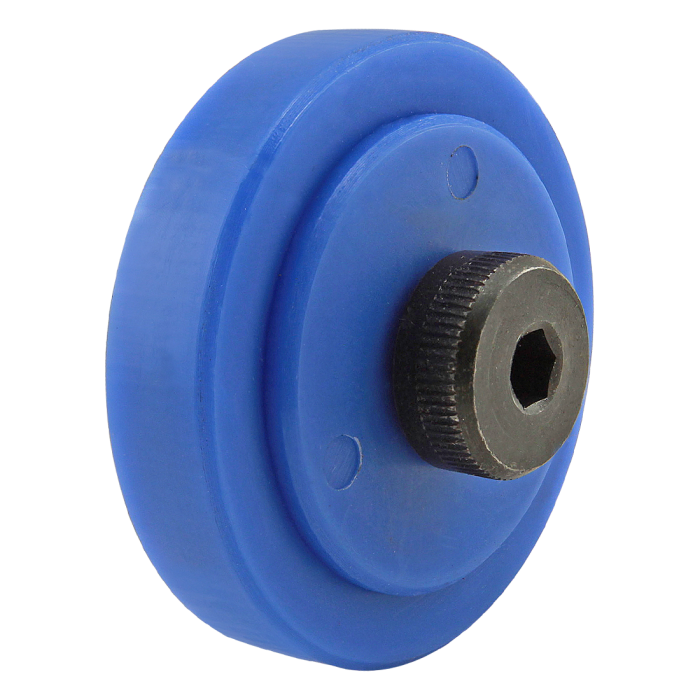

25 to 40 Series Roller Wheel with Permanent Lubricated Bushing
25 to 40 Series Roller Wheel with Permanent Lubricated Bushing
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
....................................................................................................................................................................................................................................................
Total Price
$15.00| Series | 25 Series to 40 Series |
| Material | Nylon PA Glass Fiber Reinforced |
| Grade | K222-D |
| Color | Blue |
| Process | Injection Molded |
| A | 37.50mm |
| B | 28.00mm |
| C | 4.00mm |
| D | 28.415mm |
| E | 11.60mm |
| F | 7.90mm |
| G | 1.85mm |
| H | M6 X 1.0 |
| J | 8.97mm |
| Weight | 0.137000 |
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 25 Series to 40 Series Material Nylon PA Glass Fiber Reinforced Grade K222-D Color Blue Process Injection Molded A 37.50mm B 28.00mm C 4.00mm D 28.415mm E 11.60mm F 7.90mm G 1.85mm H M6 X 1.0 J 8.97mm Weight 0.137000
-
- Description
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
