()65-2053-Black

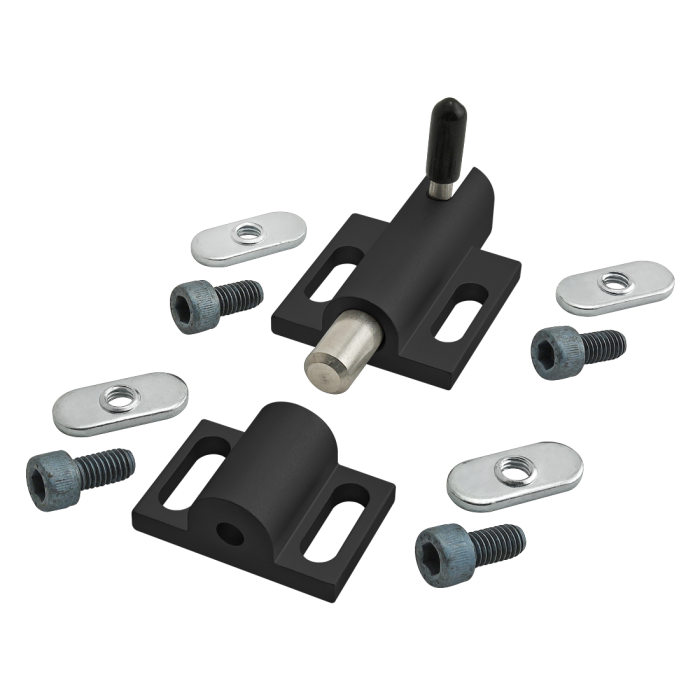

25, 30 & 40 Series 0 Degree Deadbolt Latch
The 0 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
Total Price
................................................................................................................................Series | 25 Series, 30 Series, 40 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Finish | Anodize |
Color | Black |
Process | Milled |
A | 25.40mm |
B | 38.10mm |
C | 15.88mm |
D | 12.70mm |
E | 12.88mm |
F | 12.70mm |
G | 38.10mm |
H | 26.97mm |
J | 4.75mm |
K | 15.88mm |
Weight | 0.222000 |
The 0 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
Mount to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
3062 | 4 | 1/4-20 x .500" Socket Head Cap Screw (SHCS) | |
3382 | 4 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 25 Series, 30 Series, 40 Series Material Aluminum Grade 6005A – T61 Finish Anodize Color Black Process Milled A 25.40mm B 38.10mm C 15.88mm D 12.70mm E 12.88mm F 12.70mm G 38.10mm H 26.97mm J 4.75mm K 15.88mm Weight 0.222000
-
- Description
- The 0 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 3062 4 1/4-20 x .500" Socket Head Cap Screw (SHCS)
3382 4 1/4-20 Slide-in Economy T-Nut - Centered Thread
