5625-Black

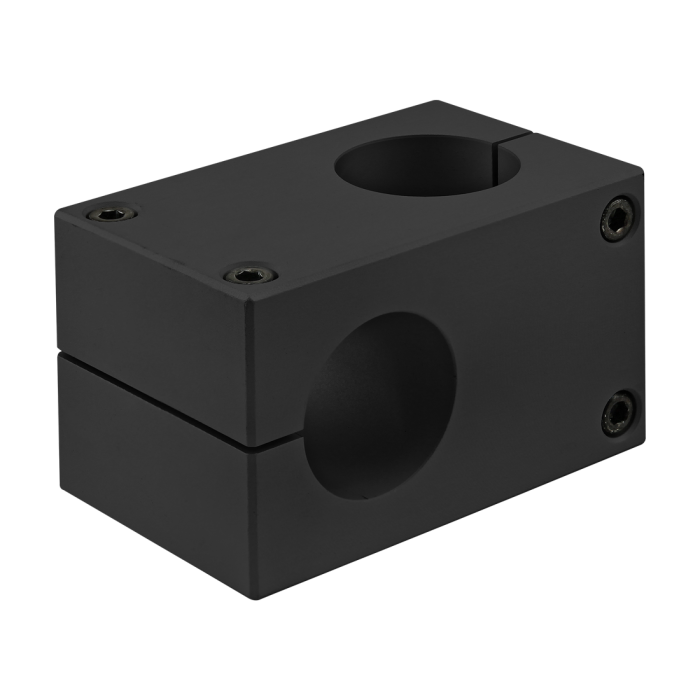

15 Series 1.5" Stanchion Cross Clamp
15 Series 1.5" Stanchion Cross Clamp
The stanchion cross clamp is commonly used with the aluminum tube profile to create two axes that are perpendicular to each other. The cross clamp is aluminum, making it a strong and durable option. Clamp screws are included.
| ESD Safe | Yes |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | 2.500" |
| B | 1.750" |
| C | .375" |
| D | 4.125" |
| E | .328" |
| F | 1.505" |
| G | 1/4-20 SHCS |
| H | 2.500" |
| J | 1.250" |
| K | 1.250" |
| L | n/a |
| Weight | 1.669000 |
The stanchion cross clamp is commonly used with the aluminum tube profile to create two axes that are perpendicular to each other. The cross clamp is aluminum, making it a strong and durable option. Clamp screws are included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Series 15 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Process Milled A 2.500" B 1.750" C .375" D 4.125" E .328" F 1.505" G 1/4-20 SHCS H 2.500" J 1.250" K 1.250" L n/a Weight 1.669000
-
- Description
The stanchion cross clamp is commonly used with the aluminum tube profile to create two axes that are perpendicular to each other. The cross clamp is aluminum, making it a strong and durable option. Clamp screws are included.
-
