5600-Black

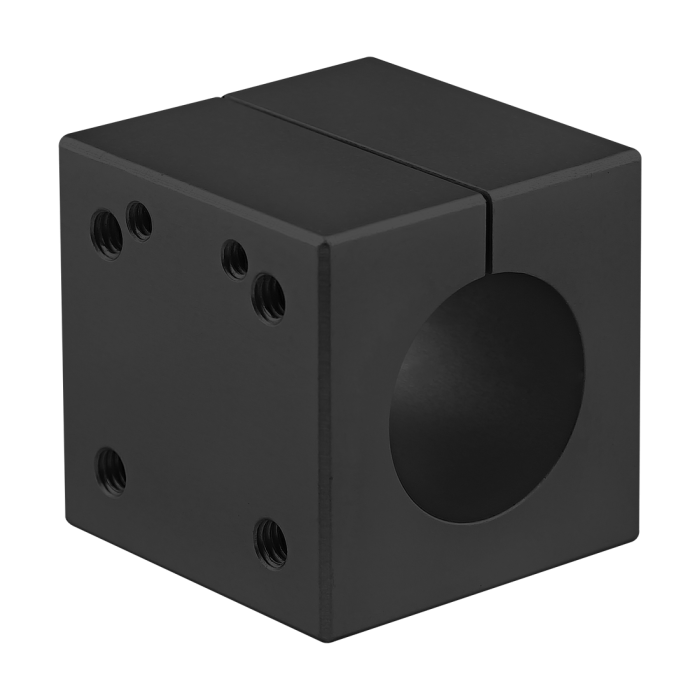

15 Series 1.5" Single Shaft Stanchion Mounting Block
15 Series 1.5" Single Shaft Stanchion Mounting Block
The single shaft stanchion mounting block is commonly used with the aluminum tube profile for connecting additional profiles or accessories. There are several pre-drilled holes to accommodate both positioning and a wide range of products. The block is aluminum, making it strong and durable. Stanchion clamp screws are included.
The single shaft stanchion mounting block is commonly used with the aluminum tube profile for connecting additional profiles or accessories. There are several pre-drilled holes to accommodate both positioning and a wide range of products. The block is aluminum, making it strong and durable. Stanchion clamp screws are included.
| ESD Safe | Yes |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | 2.500" |
| B | 1.500" |
| C | .500" |
| D | 2.500" |
| E | .500 |
| F | 5/16-18 |
| G | 2.500" |
| H | 1.250" |
| J | 1.250" |
| K | 1.505" |
| L | .328" |
| M | .810" |
| N | .880" |
| P | 1/4-20 SHCS |
| Weight | 1.060000 |
The single shaft stanchion mounting block is commonly used with the aluminum tube profile for connecting additional profiles or accessories. There are several pre-drilled holes to accommodate both positioning and a wide range of products. The block is aluminum, making it strong and durable. Stanchion clamp screws are included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Series 15 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Process Milled A 2.500" B 1.500" C .500" D 2.500" E .500 F 5/16-18 G 2.500" H 1.250" J 1.250" K 1.505" L .328" M .810" N .880" P 1/4-20 SHCS Weight 1.060000
-
- Description
The single shaft stanchion mounting block is commonly used with the aluminum tube profile for connecting additional profiles or accessories. There are several pre-drilled holes to accommodate both positioning and a wide range of products. The block is aluminum, making it strong and durable. Stanchion clamp screws are included.
-
