Product Specs

• Product Details
  •

    Series	45 Series
    Material	Aluminum
    Grade	6105-T5
    Finish	Anodize
    Color	Black
    Process	Milled
    A	38.00mm
    B	38.10mm
    C	15.88mm
    D	12.70mm
    E	12.88mm
    F	25.40mm
    G	38.10mm
    H	26.97mm
    J	4.75mm
    K	15.88mm
    Weight	0.267000

• Description

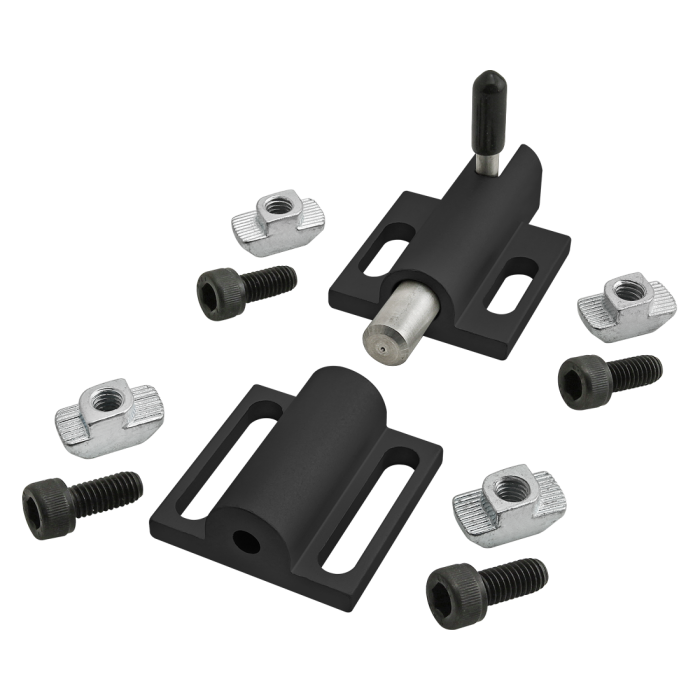

  • The 0 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.

• Incl. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description	Select Qty / Add To Cart
    	11-6514	4	M6 x 14.00mm Socket Head Cap Screw (SHCS)
    	13129	4	45 Series M6 Standard Drop-in T-Nut
