()45-2053
45 Series 0 Degree Deadbolt Latch

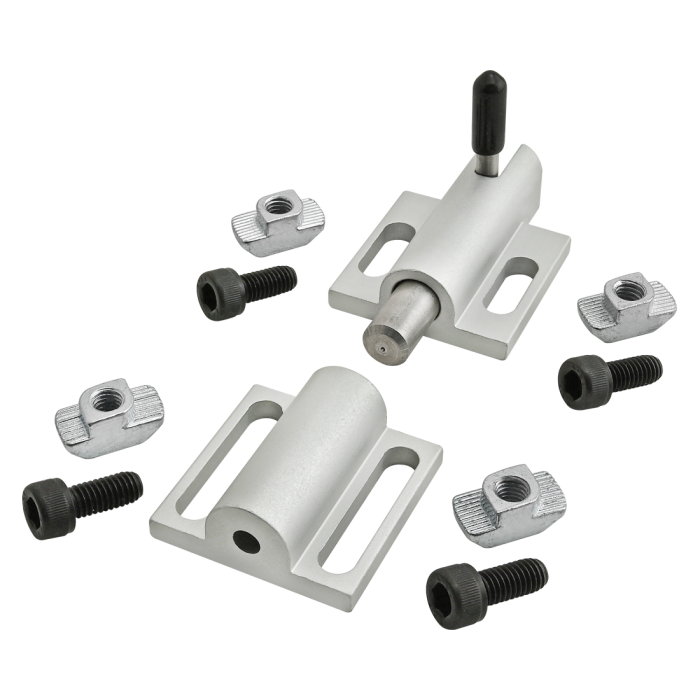

The 0 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
Total Price
................................................................................................................................Series | 45 Series |
Material | Aluminum |
Grade | 6063-T6 |
Finish | Anodize |
Color | Clear |
Process | Milled |
A | 38.00mm |
B | 38.10mm |
C | 15.88mm |
D | 12.70mm |
E | 12.88mm |
F | 25.40mm |
G | 38.10mm |
H | 26.97mm |
J | 4.75mm |
K | 15.88mm |
Weight | 0.267000 |

The 0 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
Mount to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
![]() | 11-6514 | 4 | M6 x 14.00mm Socket Head Cap Screw (SHCS) |
![]() | 13129 | 4 | 45 Series M6 Standard Drop-in T-Nut |
Product Specs
- Product Details
-
Series 45 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Clear Process Milled A 38.00mm B 38.10mm C 15.88mm D 12.70mm E 12.88mm F 25.40mm G 38.10mm H 26.97mm J 4.75mm K 15.88mm Weight 0.267000
-
- Description
- The 0 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 11-6514 4 M6 x 14.00mm Socket Head Cap Screw (SHCS)
13129 4 45 Series M6 Standard Drop-in T-Nut
