4156-Black

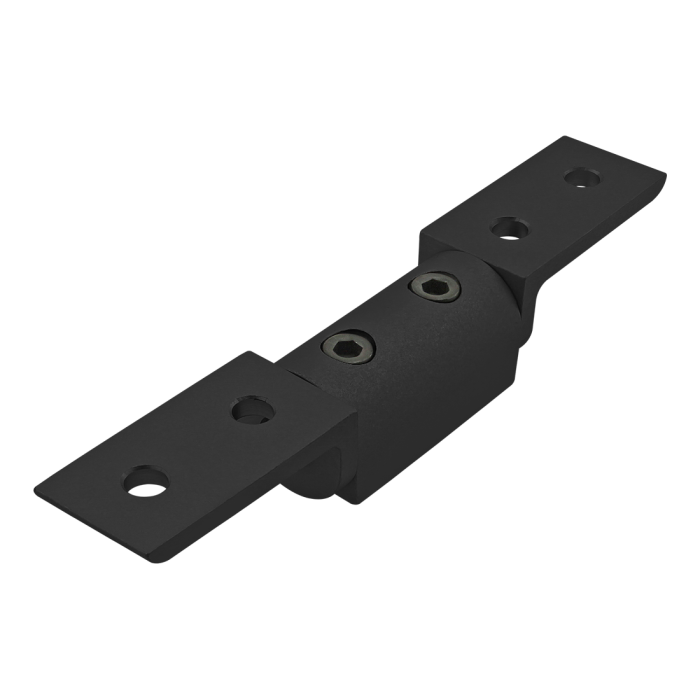

10 Series Universal Standard Structural Pivot Assembly with Dual "L" Arms
10 Series Universal Standard Structural Pivot Assembly with Dual "L" Arms
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
....................................................................................................................................................................................................................................................
Total Price
$21.93| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Process | Milled |
| Finish | Anodize |
| Color | Black |
| Nub (Qty.) | 4186 (1) |
| Arm (Qty.) | 4149 (2) |
| A | 6.000" |
| B | .500" |
| C | 1.000" |
| D | 1.000" |
| E | 1.000" |
| F | 1.275" |
| Weight | 0.311000 |
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
Arm to Nub
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3342 | 2 | 1/4-20 x .500" Flanged Button Head Socket Cap Screw (FBHSCS) |
Nub to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 3306 | 1 Or 2 | Bolt Assembly: 1/4-20 x 1.000" Black SHCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
Arm to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 3393 | 4 | Bolt Assembly: 1/4-20 x .500" Black BHSCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6105-T5 Process Milled Finish Anodize Color Black Nub (Qty.) 4186 (1) Arm (Qty.) 4149 (2) A 6.000" B .500" C 1.000" D 1.000" E 1.000" F 1.275" Weight 0.311000
-
- Description
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
-
Incl. Hardware
Arm to Nub
Series Part Number Qty Description Select Qty / Add To Cart 3342 2 1/4-20 x .500" Flanged Button Head Socket Cap Screw (FBHSCS)
Nub to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3306 1 Or 2 Bolt Assembly: 1/4-20 x 1.000" Black SHCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc
-
Sugg. Hardware
Arm to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3393 4 Bolt Assembly: 1/4-20 x .500" Black BHSCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc
