4153

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	10 Series
    Material	Aluminum
    Grade	6063-T6
    Process	Milled
    Finish	Anodize
    Color	Clear
    Nub (Qty.)	4187 (1)
    Arm (Qty.)	4149 (2)
    A	5.000"
    B	.500"
    C	1.000"
    D	1.000"
    E	1.000"
    F	1.275"
    Weight	0.208000

• Description

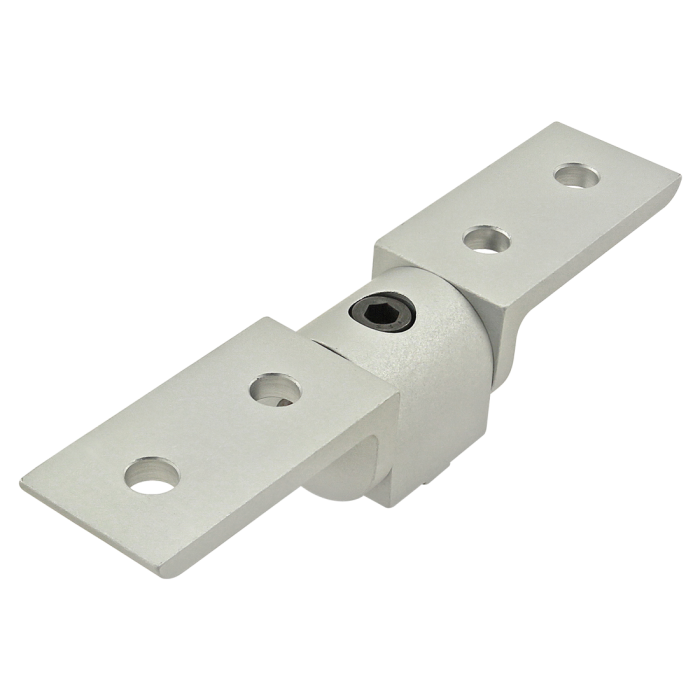

  • The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.

• Incl. Hardware

  • Arm to Nub

    Series	Part Number	Qty	Description
    	3342	2	1/4-20 x .500" Flanged Button Head Socket Cap Screw (FBHSCS)

    Nub to T-Slot

    Series	Part Number	Qty	Description
    	3306	1 Or 2	Bolt Assembly: 1/4-20 x 1.000" Black SHCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc

• Sugg. Hardware

  • Arm to T-Slot

    Series	Part Number	Qty	Description
    	3393	4	Bolt Assembly: 1/4-20 x .500" Black BHSCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc
