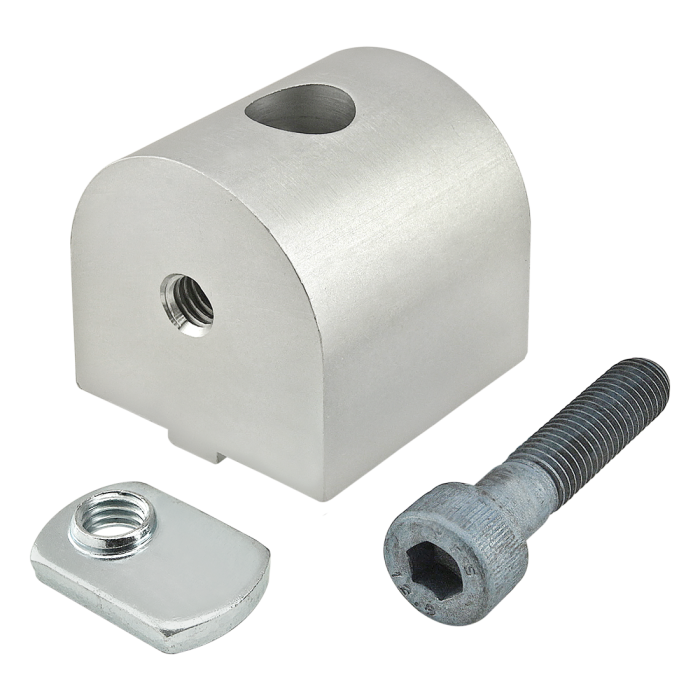

40 Series 90 Degree Structural Pivot Nub
40 Series 90 Degree Structural Pivot Nub
The 90 degree structural pivot nub is an external fastening method commonly used as a connection hub to create a structural pivot ranging from 0-180 degrees perpendicular to the mounting profile. It has a slot tab that helps prevent the nub from rotating as well as assists with alignment in the T-slot. The 90 degree structural pivot nub requires no machining services and can be easily assembled, lending itself to repositioning and reuse. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
The 90 degree structural pivot nub is an external fastening method commonly used as a connection hub to create a structural pivot ranging from 0-180 degrees perpendicular to the mounting profile. It has a slot tab that helps prevent the nub from rotating as well as assists with alignment in the T-slot. The 90 degree structural pivot nub requires no machining services and can be easily assembled, lending itself to repositioning and reuse. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Total Price
................................................................................................................................Series | 40 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Process | Milled |
Finish | Anodize |
Color | Clear |
A | 40.00mm |
B | 20.00mm |
C | 40.00mm |
D | 20.00mm |
E | M8 |
F | M8 x 1.25 |
G | 40.00mm |
H | 20.00mm |
J | 7.92mm |
K | 16.03mm |
L | 20.00mm |
M | 20.00mm |
N | 2.13mm |
P | 7.92mm |
Weight | 0.340700 |
The 90 degree structural pivot nub is an external fastening method commonly used as a connection hub to create a structural pivot ranging from 0-180 degrees perpendicular to the mounting profile. It has a slot tab that helps prevent the nub from rotating as well as assists with alignment in the T-slot. The 90 degree structural pivot nub requires no machining services and can be easily assembled, lending itself to repositioning and reuse. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Nub to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
75-3479 | 1 | Bolt Assembly: M8 x 40.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
Arm to Nub
Series | Part Number | Qty | Description |
---|---|---|---|
13-8316 | 2 | M8 x 16.00mm Button Head Socket Cap Screw (BHSCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series Material Aluminum Grade 6005A – T61 Process Milled Finish Anodize Color Clear A 40.00mm B 20.00mm C 40.00mm D 20.00mm E M8 F M8 x 1.25 G 40.00mm H 20.00mm J 7.92mm K 16.03mm L 20.00mm M 20.00mm N 2.13mm P 7.92mm Weight 0.340700
-
- Description
The 90 degree structural pivot nub is an external fastening method commonly used as a connection hub to create a structural pivot ranging from 0-180 degrees perpendicular to the mounting profile. It has a slot tab that helps prevent the nub from rotating as well as assists with alignment in the T-slot. The 90 degree structural pivot nub requires no machining services and can be easily assembled, lending itself to repositioning and reuse. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
-
Incl. Hardware
Nub to T-Slot
Series Part Number Qty Description 75-3479 1 Bolt Assembly: M8 x 40.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc
-
Sugg. Hardware
Arm to Nub
Series Part Number Qty Description 13-8316 2 M8 x 16.00mm Button Head Socket Cap Screw (BHSCS)
