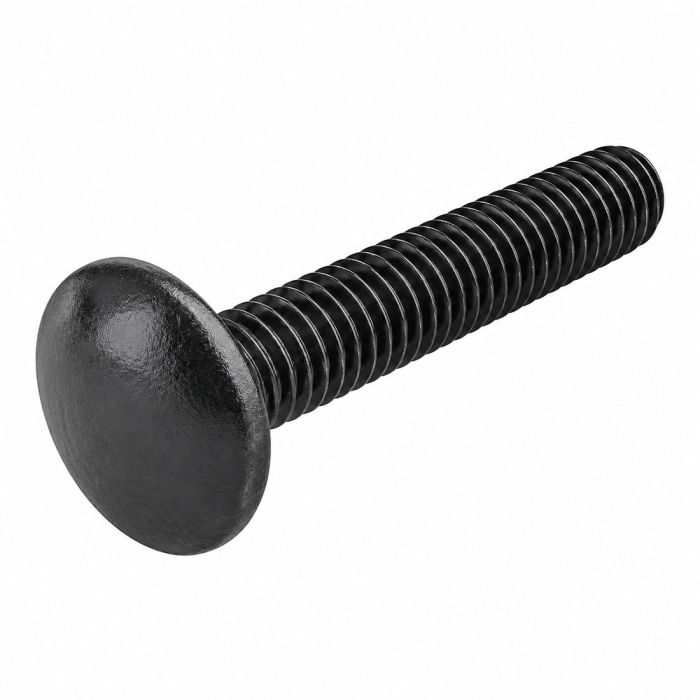

40-3290

Product Specs

• Product Details
  •

    Series	40 Series
    Material	Steel
    Finish	Zinc
    Color	Black
    A	54.75mm
    B	3.50mm
    C (Thread)	5/16-18
    D (Length)	50.80mm
    E	17.75mm
    F	7.80mm
    Weight	0.046000

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
