40-2290

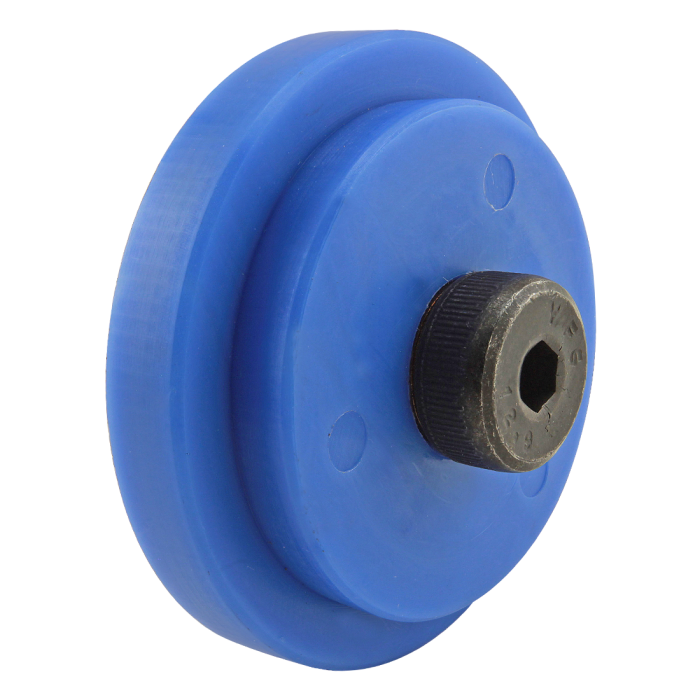

40 to 40 Series Roller Wheel with Permanent Lubricated Bushing
40 to 40 Series Roller Wheel with Permanent Lubricated Bushing
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
| ESD Safe | No |
| Series | 40 Series to 40 Series |
| Material | Nylon PA Glass Fiber Reinforced |
| Grade | K222-D |
| Color | Blue |
| Process | Injection Molded |
| A | 54.00mm |
| B | 43.00mm |
| C | 5.00mm |
| D | 40.25mm |
| E | 19.50mm |
| F | 7.90mm |
| G | 5.80mm |
| H | M8 X 1.25 |
| J | 12.92mm |
| Weight | 0.187000 |
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
Product Specs
- Product Details
-
ESD Safe No Series 40 Series to 40 Series Material Nylon PA Glass Fiber Reinforced Grade K222-D Color Blue Process Injection Molded A 54.00mm B 43.00mm C 5.00mm D 40.25mm E 19.50mm F 7.90mm G 5.80mm H M8 X 1.25 J 12.92mm Weight 0.187000
-
- Description
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
-
