40-2754
40 Series Dual Roller Wheel Bracket
40 Series Dual Roller Wheel Bracket

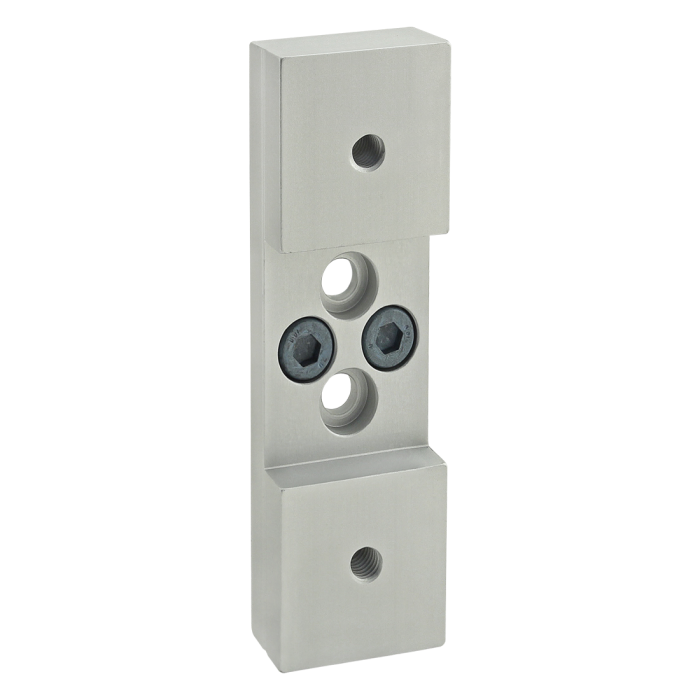

The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. It includes the hardware for mounting the bracket to the T-slot.
| ESD Safe | No |
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 40.00mm |
| B | 20.00mm |
| C | 20.00mm |
| D | 49.65mm |
| E | 24.00mm |
| F | 10.00mm |
| G | 20.00mm |
| H | M8 X 1.25 |
| J | M8 X 1.25 |
| K | 10.20mm |
| L | 25.20mm |
| M | 123.30mm |
| N | 38.30mm |
| P | 46.70mm |
| Q | 19.00mm |
| Weight | 0.489000 |
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. It includes the hardware for mounting the bracket to the T-slot.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 40 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Clear Process Milled A 40.00mm B 20.00mm C 20.00mm D 49.65mm E 24.00mm F 10.00mm G 20.00mm H M8 X 1.25 J M8 X 1.25 K 10.20mm L 25.20mm M 123.30mm N 38.30mm P 46.70mm Q 19.00mm Weight 0.489000
-
- Description
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. It includes the hardware for mounting the bracket to the T-slot.
-
CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
-
