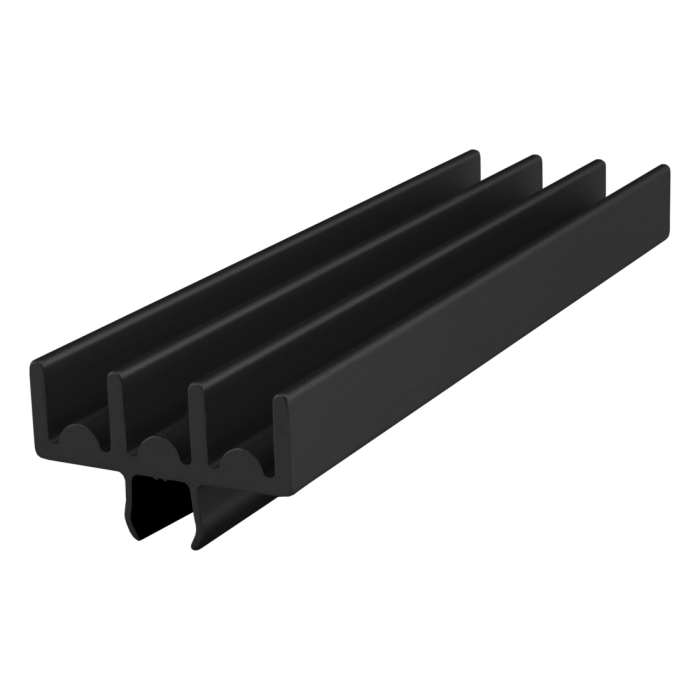

40 Series Lower Door Slide Track
40 Series Lower Door Slide Track
The lower door slide track snaps into a T-slot with no required hardware. This track is typically used with the upper door slide track to allow panels to be inserted after the frame is assembled. The lower slide track has a radius bearing surface that allows panels to slide easily. The lower door slide track is 145” (3.683M) and can be cut to length with a standard machining service.
Price Per Inch
$0.42In stock
Total Price
$0.42Series | 40 Series |
Material | Aluminum |
Grade | 6105-T5 |
Process | Extruded |
Finish | Anodize |
Color | Black |
A | 4.29mm |
B | 10.16mm |
C | 6.99mm |
D | 28.58mm |
Length | per millimeter |
Weight | 0.023000 |

The lower door slide track snaps into a T-slot with no required hardware. This track is typically used with the upper door slide track to allow panels to be inserted after the frame is assembled. The lower slide track has a radius bearing surface that allows panels to slide easily. The lower door slide track is 145” (3.683M) and can be cut to length with a standard machining service.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series Material Aluminum Grade 6105-T5 Process Extruded Finish Anodize Color Black A 4.29mm B 10.16mm C 6.99mm D 28.58mm Length per millimeter Weight 0.023000
-
- Description
The lower door slide track snaps into a T-slot with no required hardware. This track is typically used with the upper door slide track to allow panels to be inserted after the frame is assembled. The lower slide track has a radius bearing surface that allows panels to slide easily. The lower door slide track is 145” (3.683M) and can be cut to length with a standard machining service.
