40 Series Heavy-Duty Flange Mount Caster Base Plate

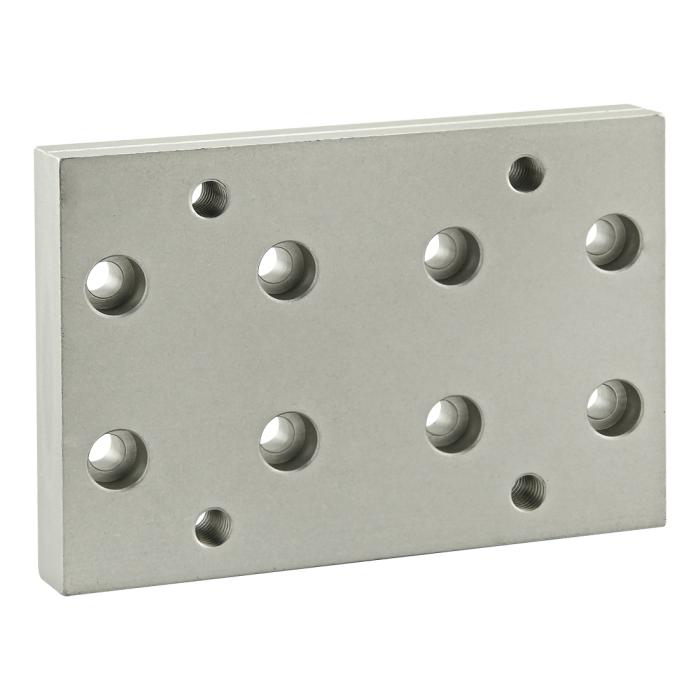

The heavy-duty flange mount caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount casters with high load capacities for an added layer of strength and durability. The heavy-duty flange mount caster base plate requires a tap to mount to the profile end.
Total Price
$29.15Series | 40 Series |
Material | Aluminum |
Grade | 6105-T5 |
Process | Milled |
Finish | Anodize |
Color | Clear |
A | 76.20mm |
B | 11.90mm |
C | 40.00mm |
D | 13.00mm |
E | 30.00mm |
F | M8 SHCS |
G | M10 x 1.5 |
H | 146.00mm |
J | 34.90mm |
K | 19.00mm |
L | 100.00mm |
Weight | 1.525000 |

The heavy-duty flange mount caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount casters with high load capacities for an added layer of strength and durability. The heavy-duty flange mount caster base plate requires a tap to mount to the profile end.
Mount to T-Slot
Series | Part Number | Qty | Description | Select Qty / Add To Cart |
---|---|---|---|---|
![]() | 75-3430 | 4 To 8 | Bolt Assembly: M8 x 20.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
Mount to Profile End
Series | Part Number | Qty | Description | Select Qty / Add To Cart |
---|---|---|---|---|
![]() | 13-8530 | 2 To 4 | M8 x 30.00mm Socket Head Cap Screw (SHCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series Material Aluminum Grade 6105-T5 Process Milled Finish Anodize Color Clear A 76.20mm B 11.90mm C 40.00mm D 13.00mm E 30.00mm F M8 SHCS G M10 x 1.5 H 146.00mm J 34.90mm K 19.00mm L 100.00mm Weight 1.525000
-
- Description
- The heavy-duty flange mount caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount casters with high load capacities for an added layer of strength and durability. The heavy-duty flange mount caster base plate requires a tap to mount to the profile end.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 75-3430 4 To 8 Bolt Assembly: M8 x 20.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc Mount to Profile End
Series Part Number Qty Description Select Qty / Add To Cart 13-8530 2 To 4 M8 x 30.00mm Socket Head Cap Screw (SHCS)
