40-2091
40 Series 4 Hole - Detent Hinge
40 Series 4 Hole - Detent Hinge

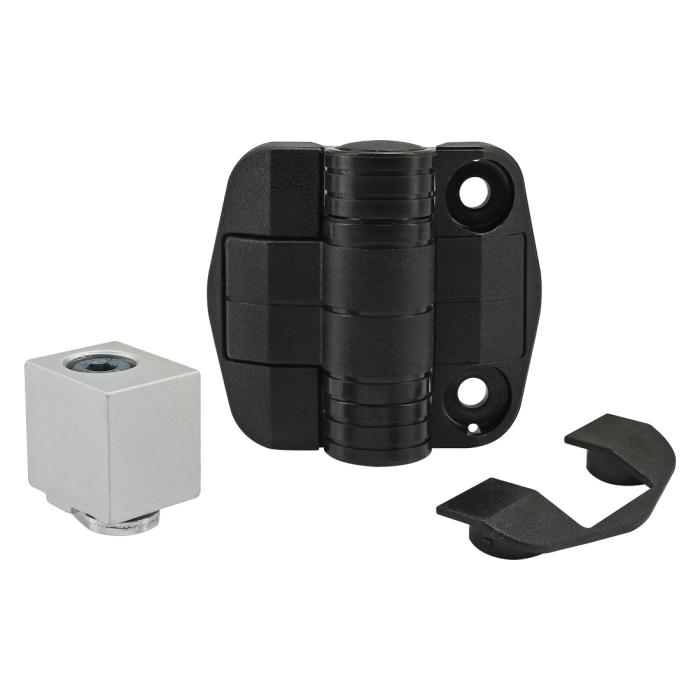

The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
| ESD Safe | No |
| Series | 40 Series |
| Material | Acetal with Stainless Steel Ball/Spring Detent & Aluminum Panel Block |
| Process | Injection Molded and Extruded |
| Alloy | 6063-T6 |
| Finish | Plastic & Anodize |
| Color | Black |
| A | 34.00mm |
| B | 49.70mm |
| C | 34.00mm |
| D | 28.50mm |
| E | 17.20mm |
| F | 5.20mm |
| G | 9.10mm |
| H | 8.90mm |
| J | 28.50mm |
| K | 52.00mm |
| Weight | 0.135000 |
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
Per Leaf Mount to T-slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3583 | 2 | Bolt Assembly: M5 x 12.00mm Black BHSCS with Standard Drop-In T-Nut - Bright Zinc |
Per Leaf Mount to Panel LTE .250" / 6mm
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 75-3540 | 2 | Bolt Assembly: M5 x 16.00mm Black BHSCS with Washer and Hex Nut - Black Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 40 Series Material Acetal with Stainless Steel Ball/Spring Detent & Aluminum Panel Block Process Injection Molded and Extruded Alloy 6063-T6 Finish Plastic & Anodize Color Black A 34.00mm B 49.70mm C 34.00mm D 28.50mm E 17.20mm F 5.20mm G 9.10mm H 8.90mm J 28.50mm K 52.00mm Weight 0.135000
-
- Description
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
