40-2079

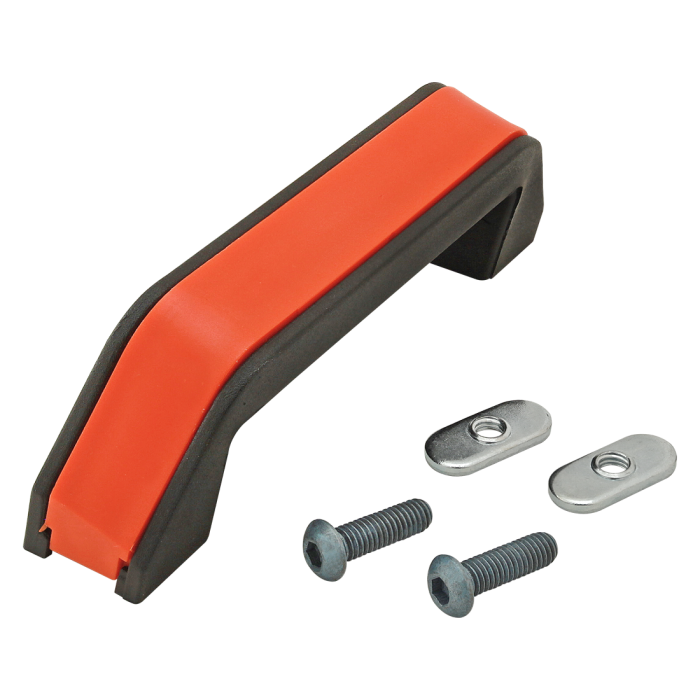

25, 30 & 40 Series Offset Plastic Handle
25, 30 & 40 Series Offset Plastic Handle
The offset plastic handle is made of fiberglass-reinforced nylon that is corrosion-resistant making it useful for both indoor and outdoor applications. It bolts directly to the T-slot profile and is ideal for bi-fold doors. One side is completely solid to prevent finger-pinching and there is an orange snap-on cover included to hide the mounting screws and provide a clean look. All mounting hardware is included.
The offset plastic handle is made of fiberglass-reinforced nylon that is corrosion-resistant making it useful for both indoor and outdoor applications. It bolts directly to the T-slot profile and is ideal for bi-fold doors. One side is completely solid to prevent finger-pinching and there is an orange snap-on cover included to hide the mounting screws and provide a clean look. All mounting hardware is included.
| ESD Safe | No |
| Series | 25 Series, 30 Series, 40 Series |
| Material | Fiberglass-Reinforced Nylon |
| Finish | Matte |
| Process | Molded |
| Body Color | Black |
| Cover Color | Orange |
| A | 129.00mm |
| B | 90.00mm |
| C | 5.50mm |
| D | 109.00mm |
| E | 12.25mm |
| F | 24.50mm |
| G | 6.00mm |
| H | 44.90mm |
| J | 15° |
| Weight | 0.182000 |
The offset plastic handle is made of fiberglass-reinforced nylon that is corrosion-resistant making it useful for both indoor and outdoor applications. It bolts directly to the T-slot profile and is ideal for bi-fold doors. One side is completely solid to prevent finger-pinching and there is an orange snap-on cover included to hide the mounting screws and provide a clean look. All mounting hardware is included.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 75-3406 | 2 | Bolt Assembly: M6 x 16.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
 | 75-3407 | 2 | Bolt Assembly: M6 x 20.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 25 Series, 30 Series, 40 Series Material Fiberglass-Reinforced Nylon Finish Matte Process Molded Body Color Black Cover Color Orange A 129.00mm B 90.00mm C 5.50mm D 109.00mm E 12.25mm F 24.50mm G 6.00mm H 44.90mm J 15° Weight 0.182000
-
- Description
The offset plastic handle is made of fiberglass-reinforced nylon that is corrosion-resistant making it useful for both indoor and outdoor applications. It bolts directly to the T-slot profile and is ideal for bi-fold doors. One side is completely solid to prevent finger-pinching and there is an orange snap-on cover included to hide the mounting screws and provide a clean look. All mounting hardware is included.
- Incl. Hardware
-
