Product Specs

• Product Details
  •

    Series	15 Series
    Material	Steel
    Finish	Zinc
    Color	Bright

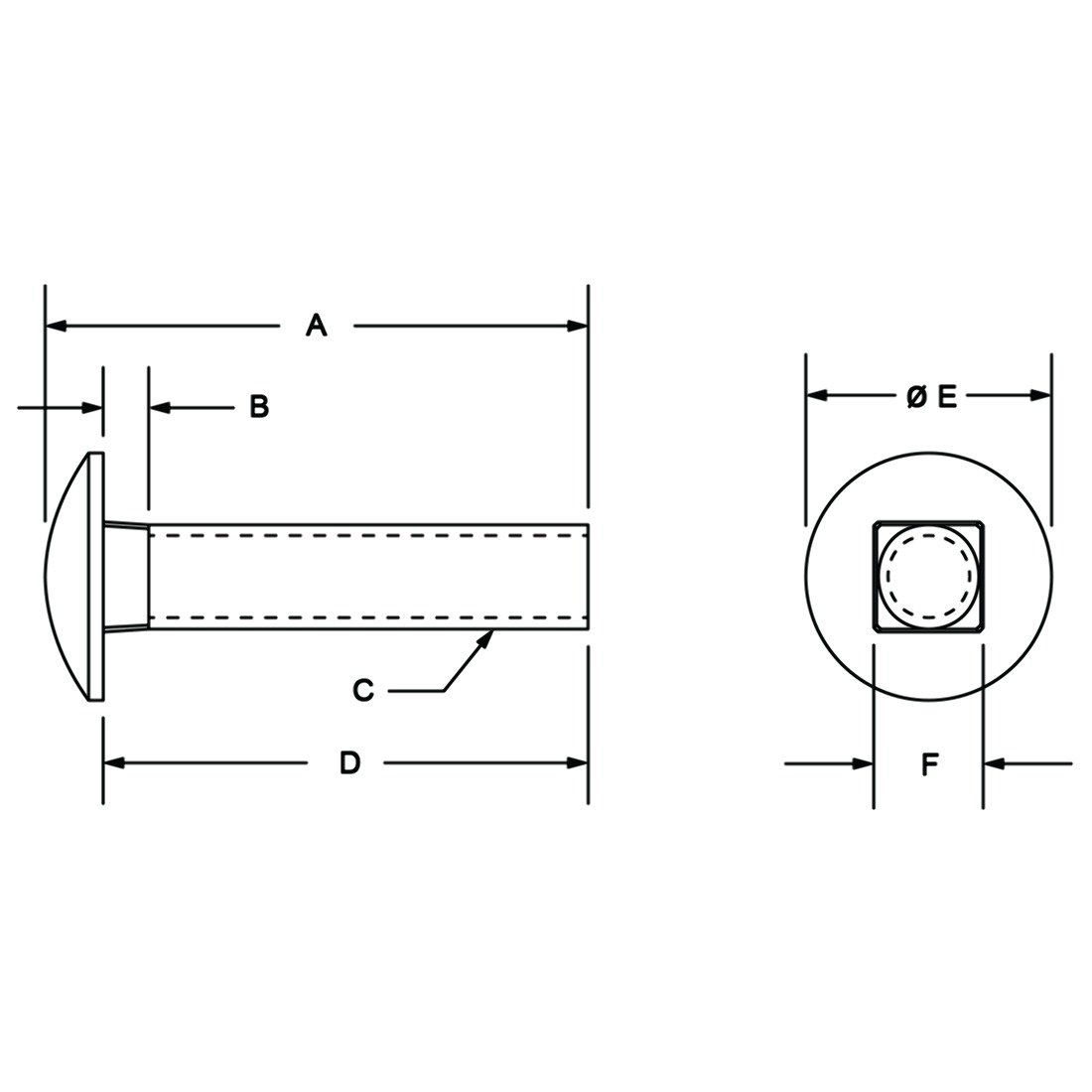

    A	1.350"
    B	.135"
    C (Thread)	M8 x 1.25
    D (Length)	1.181"
    E	.700"
    F	.308"
    Weight	0.033000
