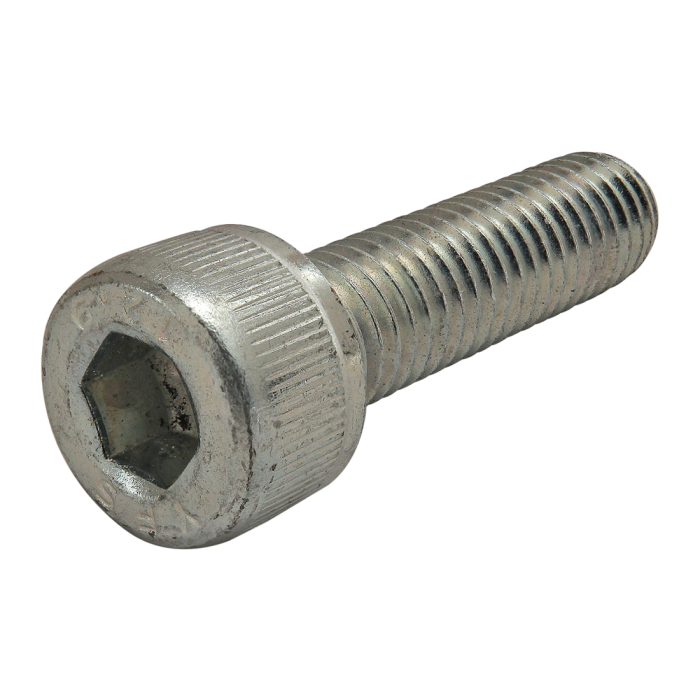

3822

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	12.80mm
    B	6.00mm
    C	7.82mm
    D (Length)	30.00mm
    E (Thread)	M8 X 1.25
    Thread Length	Full Thread
    Weight	0.035000

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
