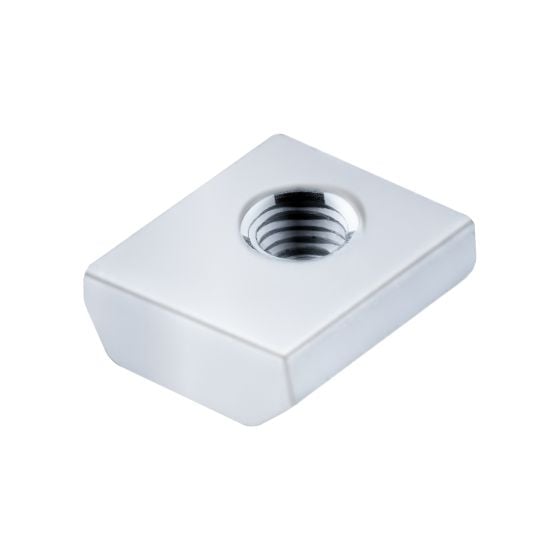

10 Series 10-32 Standard Slide-in T-Nut
The standard slide-in T-nut is a fastening option that loads from the profile ends. It is a strong, durable connection that is available with options in size, thread, and finish.
| Series | 10 Series |
| Type | Standard T-Nut |
| Material | Steel |
| Grade | 1215 |
| Finish | Zinc |
| Color | Bright |
| A | 0.490" |
| B | 0.200" |
| C | 0.431" |
| D (Thread) | 10-32 |
| E | 0.171" |
| Weight | 0.007000 |
| Max Length (inches) | N/A |
The standard slide-in T-nut is a fastening option that loads from the profile ends. It is a strong, durable connection that is available with options in size, thread, and finish.
