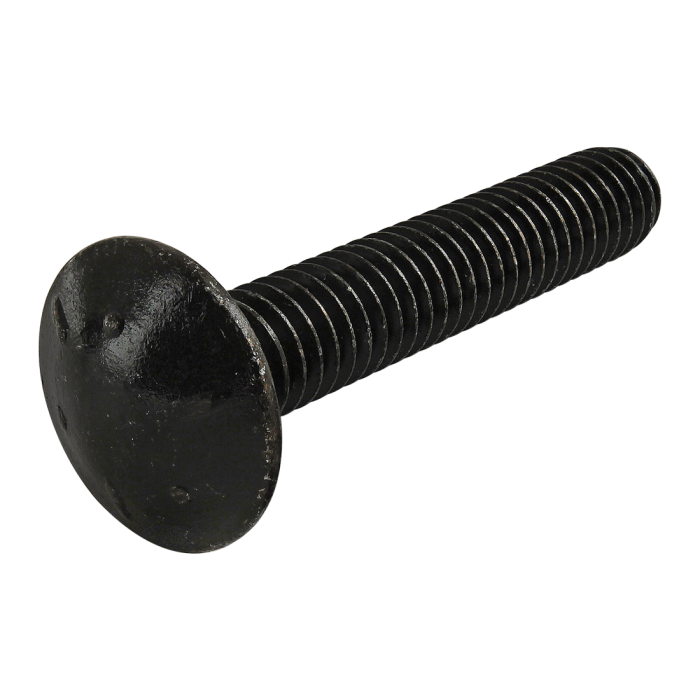

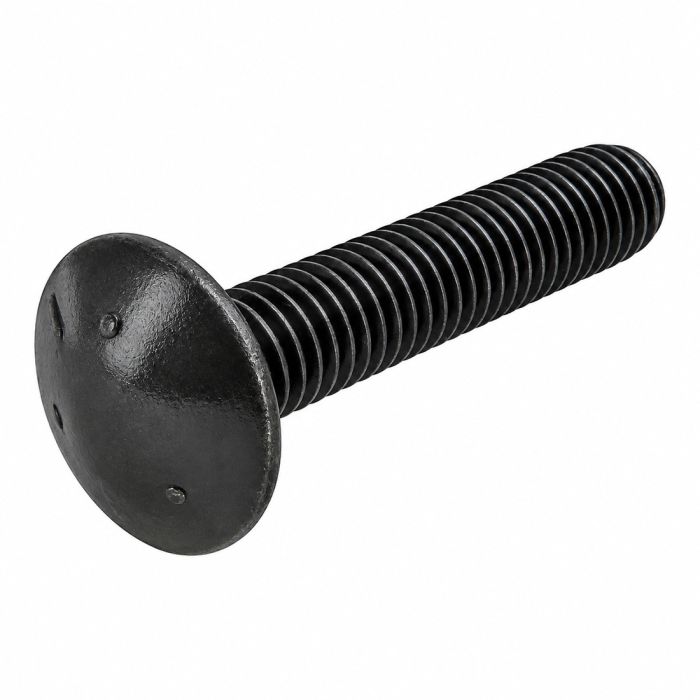

3288

Product Specs

• Product Details
  •

    Series	15 Series
    Material	Steel
    Finish	Zinc
    Color	Black
    A	1.905"
    B	.135"
    C (Thread)	5/16-18
    D (Length)	1.750"
    E	.700"
    F	.308"
    Weight	0.042000
