2757-Black

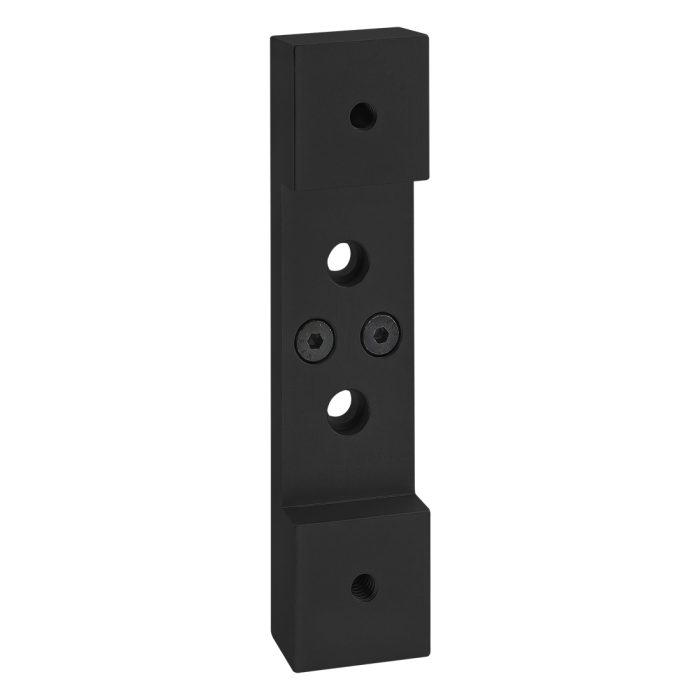

15 Series Dual Roller Wheel Bracket
15 Series Dual Roller Wheel Bracket
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. The mounting hardware is included.
| ESD Safe | No |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | 1.500" |
| B | .750" |
| C | .750" |
| D | 2.313" |
| E | 1.500" |
| F | .382" |
| G | .735" |
| H | 5/16-18 |
| J | 5/16-18 |
| K | .390" |
| L | 1.181" |
| M | 6.125" |
| N | 1.438" |
| P | 3.250" |
| Q | .750" |
| Weight | 0.534000 |
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. The mounting hardware is included.
Product Specs
- Product Details
-
ESD Safe No Series 15 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Process Milled A 1.500" B .750" C .750" D 2.313" E 1.500" F .382" G .735" H 5/16-18 J 5/16-18 K .390" L 1.181" M 6.125" N 1.438" P 3.250" Q .750" Weight 0.534000
-
- Description
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. The mounting hardware is included.
-
