2716
Leveling Casters
Leveling Casters

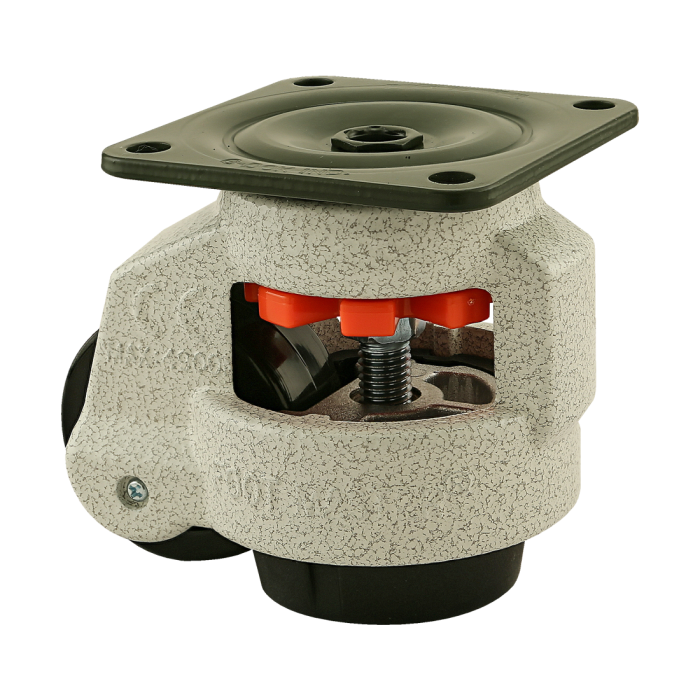

The leveling caster is a foot that incorporates both leveling features and mobility with one component. It is commonly mounted to the end or side of a T-slot profile with a base plate. The leveling caster is available in four sizes. It is ideal for large machine and automation frames. Note: *Center bar not available on part numbers 2717.
The leveling caster is a foot that incorporates both leveling features and mobility with one component. It is commonly mounted to the end or side of a T-slot profile with a base plate. The leveling caster is available in four sizes. It is ideal for large machine and automation frames. Note: *Center bar not available on part numbers 2717.
Total Price
................................................................................................................................| Series | Fractional, Metric |
| Material | Die Cast Aluminum / Plastic Nylon (Nylon 6) |
| Finish | Powder Coat Over Zinc |
| Color | Light Gray / Black |
| A | 1.193" (30.30mm) |
| B | .433" (11.00mm) |
| C | 2.756" (70.00mm) |
| D | 3.740" (95.00mm) |
| E | 4.724 (120.00mm) |
| F | 93.563" (90.50mm) |
| G | 4.035" / 5.197" (102.50mm / 132.00mm) |
| Load Capacity | 1650.00 lb 748.42 kg) |
| Weight | 3.950000 |
The leveling caster is a foot that incorporates both leveling features and mobility with one component. It is commonly mounted to the end or side of a T-slot profile with a base plate. The leveling caster is available in four sizes. It is ideal for large machine and automation frames. Note: *Center bar not available on part numbers 2717.
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3125 | 4 | 3/8-16 x .750" Socket Head Cap Screw (SHCS) |
 | 2409 | 1 | 15 Series Leveling Caster Base Plate |
 | 13-1520 | 4 | M10 x 20.00mm Socket Head Cap Screw (SHCS) |
 | 40-2409 | 1 | 40 Series Leveling Caster Base Plate |
Product Specs
- Product Details
-
Series Fractional, Metric Material Die Cast Aluminum / Plastic Nylon (Nylon 6) Finish Powder Coat Over Zinc Color Light Gray / Black A 1.193" (30.30mm) B .433" (11.00mm) C 2.756" (70.00mm) D 3.740" (95.00mm) E 4.724 (120.00mm) F 93.563" (90.50mm) G 4.035" / 5.197" (102.50mm / 132.00mm) Load Capacity 1650.00 lb 748.42 kg) Weight 3.950000
-
- Description
The leveling caster is a foot that incorporates both leveling features and mobility with one component. It is commonly mounted to the end or side of a T-slot profile with a base plate. The leveling caster is available in four sizes. It is ideal for large machine and automation frames. Note: *Center bar not available on part numbers 2717.
-
Sugg. Hardware
Mount to Base Plate
Series Part Number Qty Description 3125 4 3/8-16 x .750" Socket Head Cap Screw (SHCS)
2409 1 15 Series Leveling Caster Base Plate 13-1520 4 M10 x 20.00mm Socket Head Cap Screw (SHCS)
40-2409 1 40 Series Leveling Caster Base Plate
