2678

Product Specs

• Product Details
  •

    ESD Safe	No
    Weight	4.850000
    Series	10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series
    A	36.000"
    B	15 ft.
    C	1.620"
    D	1.250"
    E	20 amp
    Rated	2400W, 120V, 20A
    Outlets	12 (2 20 Amp NEMA 5-20P outlets and 10 15 Amp NEMA 5-15R outlets)
    Plug	NEMA 5-20P

• Description

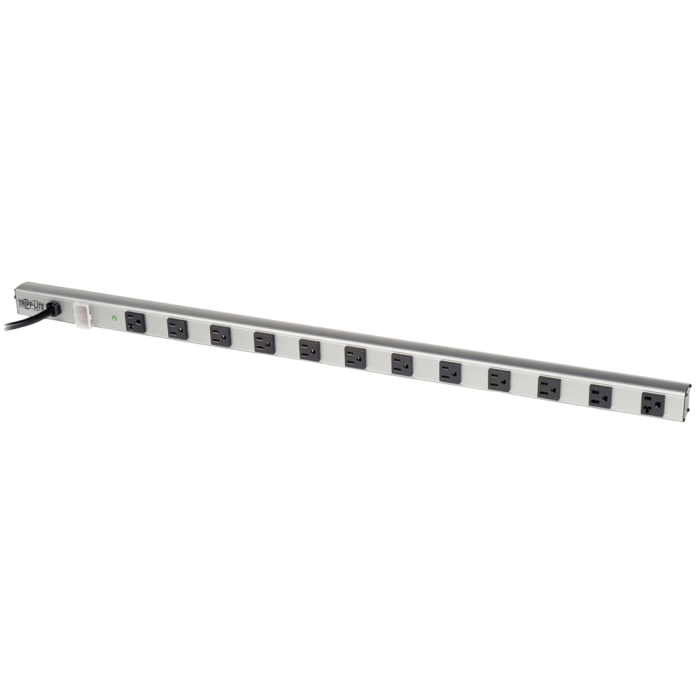

  • This power strips come in 20 amp with an illuminated power switch and resettable circuit breaker. Mounting clips are included with suggested hardware sold separately.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	11-5708	2	M5 x 8.00mm Flat Head Socket Cap Screw (FHSCS)
    			And
    	25-1951	2	M5 Slide-in Economy T-Nut - Offset Thread
    	11-5710	2	M5 x 10.00mm Flat Head Socket Cap Screw (FHSCS)
    			And
    	13115	2	30 Series M5 Standard Drop-in T-Nut
    	11-5712	2	M5 x 12.00mm Flat Head Socket Cap Screw (FHSCS)
    			And
    	3930	2	15 & 40 Series M5 Standard Drop-in T-Nut
    	11-5712	2	M5 x 12.00mm Flat Head Socket Cap Screw (FHSCS)
    			And
    	13127	2	45 Series M5 Standard Drop-in T-Nut

• CAD Files
• CAD Files
  • CAD Download
