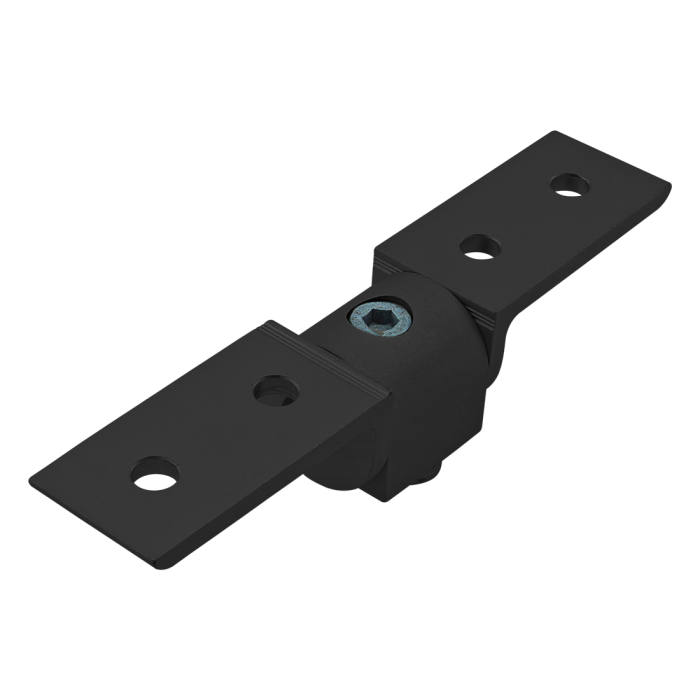

25 Series 90 Degree Standard Structural Pivot Assembly with Dual "L" Arms
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
This item requires a longer lead time. Please see Black Anodize Orders on the shipping schedule for expected lead times.
Need it faster? This similar product has a shorter lead time:
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
The standard structural pivot assembly with dual "L" arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two "L" structural pivot arms.
Arm to Nub
Series
Part Number
Qty
Description
Select Qty / Add To Cart
13-6312
2
M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
Nub to T-Slot
Series
Part Number
Qty
Description
Select Qty / Add To Cart
75-3415
1 Or 2
Bolt Assembly: M6 x 25.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
Arm to T-Slot
Series
Part Number
Qty
Description
Select Qty / Add To Cart
75-3404
4
Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
