25-3681

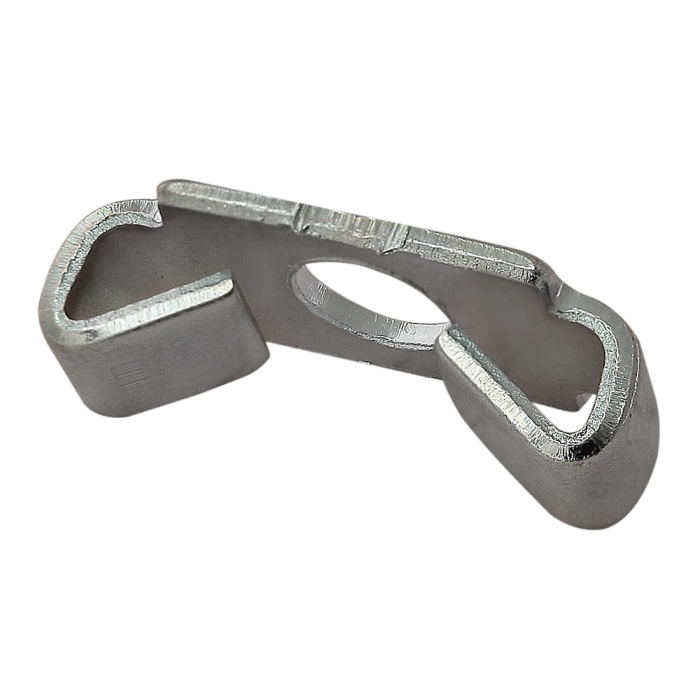

25 Series Standard End Fastener Clip
25 Series Standard End Fastener Clip
The wing clip is commonly used with a button head socket cap screw (PN 13-6316 or PN 17-6316) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
The wing clip is commonly used with a button head socket cap screw (PN 13-6316 or PN 17-6316) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
| ESD Safe | Yes |
| Series | 25 Series |
| Type | Clip |
| Material | Steel |
| Color | Bright |
| A | 10.94mm |
| B | 7.44mm |
| C | 6.09mm |
| D | 6.52mm |
| E | 23.79mm |
| F | 15.87mm |
| G | n/a |
| H | n/a |
| Weight | 0.010000 |
The wing clip is commonly used with a button head socket cap screw (PN 13-6316 or PN 17-6316) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Series 25 Series Type Clip Material Steel Color Bright A 10.94mm B 7.44mm C 6.09mm D 6.52mm E 23.79mm F 15.87mm G n/a H n/a Weight 0.010000
-
- Description
The wing clip is commonly used with a button head socket cap screw (PN 13-6316 or PN 17-6316) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
-
