25-2752

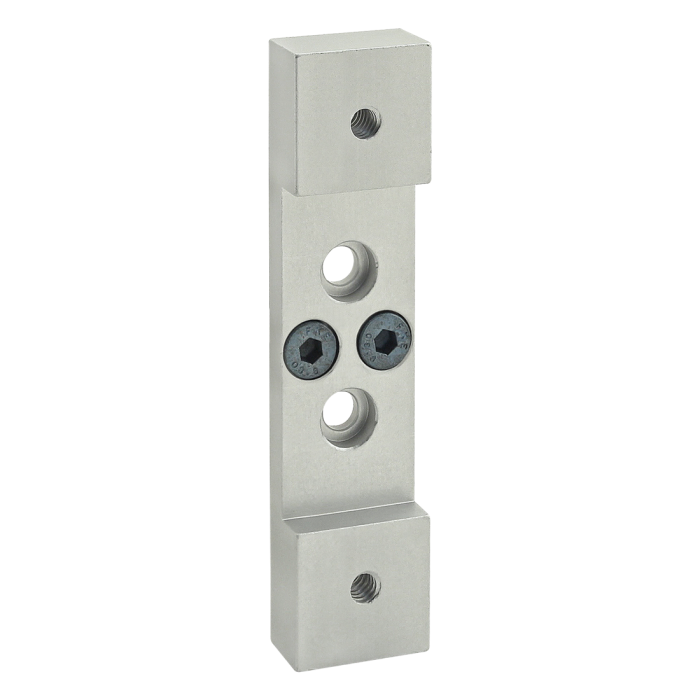

25 Series Dual Roller Wheel Bracket
25 Series Dual Roller Wheel Bracket
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. The mounting hardware is included.
....................................................................................................................................................................................................................................................
Total Price
$16.30| Series | 25 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 25.40mm |
| B | 12.70mm |
| C | 12.70mm |
| D | 38.80mm |
| E | 25.40mm |
| F | 5.81mm |
| G | 13.81mm |
| H | M6 X 1.0 |
| J | M6 X 1.0 |
| K | 6.40mm |
| L | 20.42mm |
| M | 103.00mm |
| N | 23.44mm |
| P | 56.10mm |
| Q | 12.70mm |
| Weight | 0.158000 |
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. The mounting hardware is included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 25 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Process Milled A 25.40mm B 12.70mm C 12.70mm D 38.80mm E 25.40mm F 5.81mm G 13.81mm H M6 X 1.0 J M6 X 1.0 K 6.40mm L 20.42mm M 103.00mm N 23.44mm P 56.10mm Q 12.70mm Weight 0.158000
-
- Description
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. The mounting hardware is included.
